LPV-60

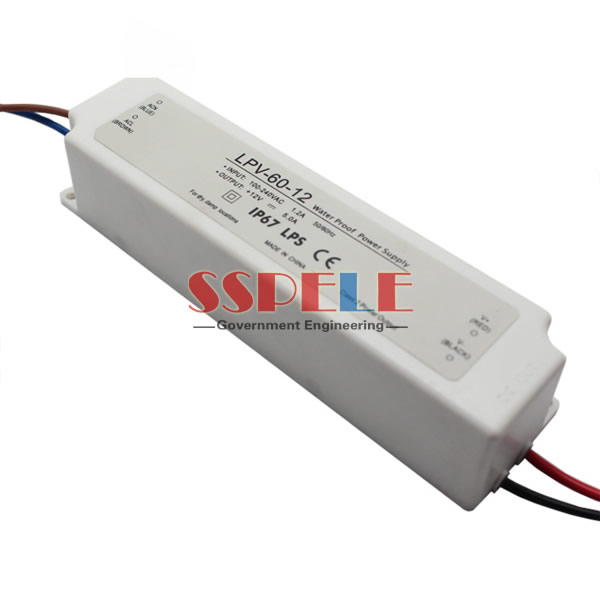

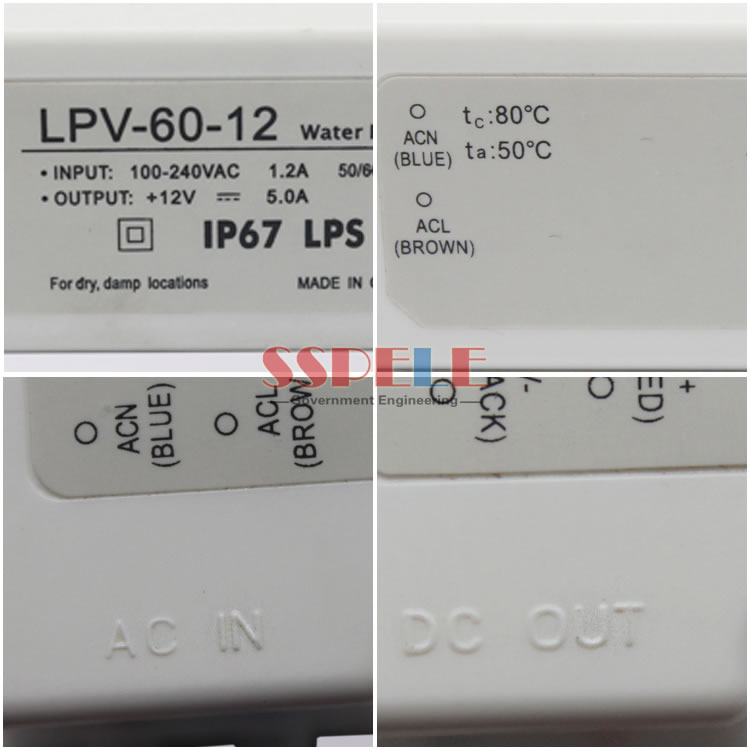

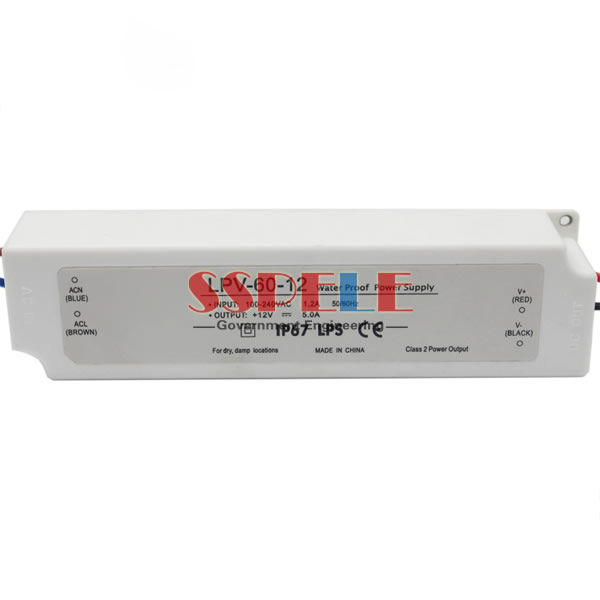

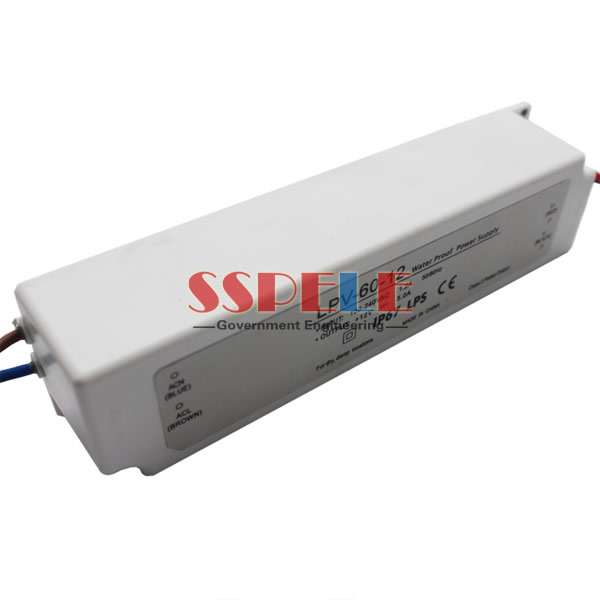

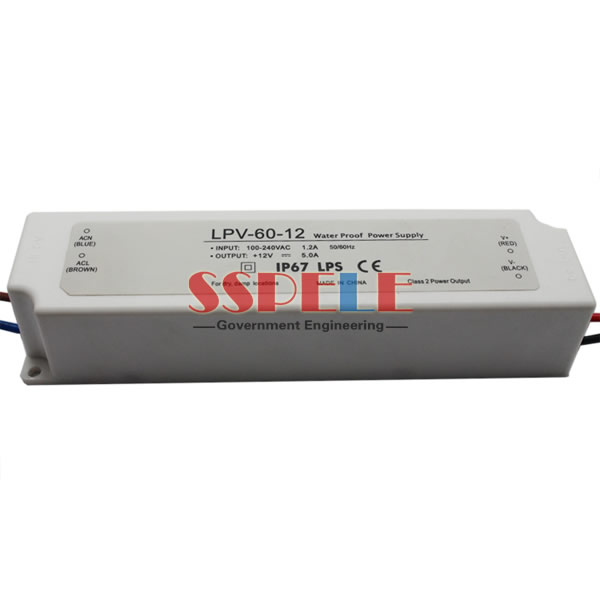

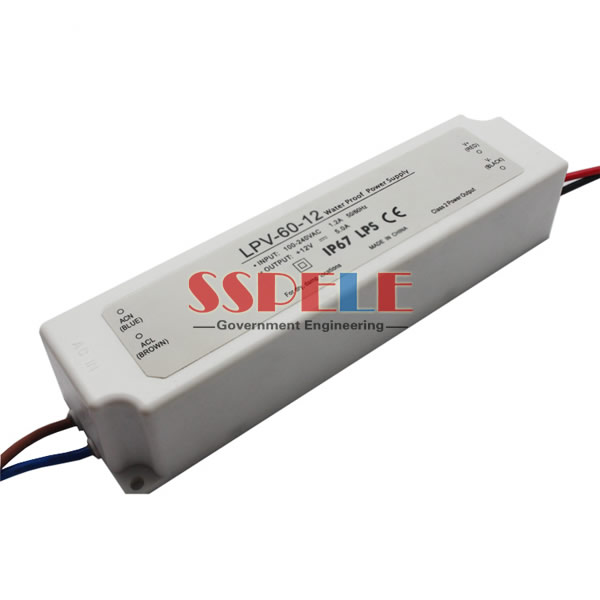

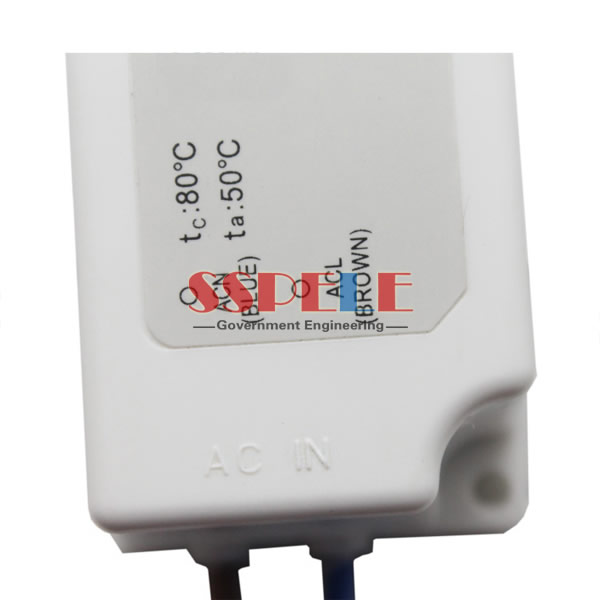

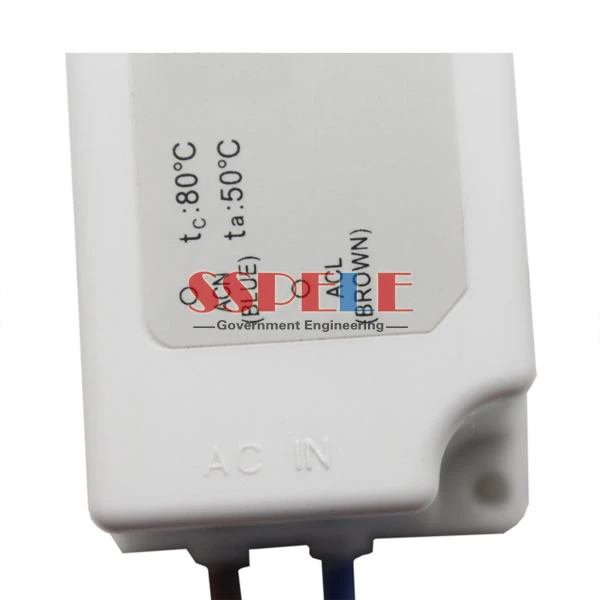

60W Waterproof Single Output Switching Power Supply LPV-60 series
Features:
Constant voltage design
Universal AC i
60W Waterproof Single Output Switching Power Supply LPV-60 series
Features:
- Constant voltage design
- Universal AC input/Full range
- Withstand 300VAC surge input for 5 seconds
- Protections: short circuit/ over load/ over voltage
- Cooling by free air convection
- Small and compact size
- Fully encapsulated with IP67 level
- Fully isolated plastic case
- Class IIpower unit, no FG
- Class 2 power unit
- Pass LPS
- Suitable for LED lighting and moving sign applications
- 100% full load burn-in test
- Low cost, high reliability
- 2 year warranty
|
SPECIFICATIONS
|
||||||
|
OUTPUT
|
|
|||||
|
Model
|
LPV-60-5
|
LPV-60-12
|
LPV-60-15
|
LPV-60-24
|
LPV-60-36
|
LPV-60-48
|
|
DC Voltage
|
5V
|
12V
|
15V
|
24V
|
36V
|
48V
|
|
Rated Current
|
8A
|
5A
|
4A
|
2.5A
|
1.67A
|
1.25A
|
|
Current Range
|
0-8A
|
0-5A
|
0-4A
|
0-2.5A
|
0-1.67A
|
0-1.25A
|
|
Rated Power
|
40W
|
60W
|
60W
|
60W
|
60W
|
60W
|
|
Ripple&Noise
|
80mVp-p
|
120mVp-p
|
120mVp-p
|
150mVp-p
|
150mVp-p
|
150mVp-p
|
|
Voltage Tolerance
|
±8%
|
±5%
|
||||
|
Line Regulation
|
±1%
|
|||||
|
Load Regulation
|
±6%
|
±2%
|
||||
|
Setup,Rise Time
|
500ms, 20ms/230VAC500ms, 20ms/115VAC at full load(for 5-36V)
500ms, 30ms/230VAC500ms, 30ms/115VAC at full load(for 48V)
|
|||||
|
Hold Up Time
|
50ms/230VAC 16ms/115VAC at full load
|
|||||
|
|
|
|||||
|
INPUT
|
|
|||||
|
Voltage Range
|
90~264VAC47-63Hz;127~370VDC
|
|||||
|
AC Current
|
1.2A/115V1A/230V
|
|||||
|
Efficiency
|
76%
|
83%
|
83%
|
86%
|
86%
|
86%
|
|
Inrush Current
|
Cold Start60A at 230VAC
|
|||||
|
Leakage Current
|
0.25mA/240VAC
|
|||||
|
|
|
|||||
|
PROTECTION
|
|
|||||
|
Over Load
|
110-150% rated output power
|
|||||
|
Protectiontype: Hiccup mode, recovers automatically after fault condition is removed
|
||||||
|
Over Voltage
|
5.75-6.75V
|
13.8-16.2V
|
17.25-20.25V
|
27.6-32.4V
|
41.4-48.6V
|
55.2-64.8V
|
|
Protection type: Shut down o/p voltage, re-power on to recover
|
||||||
|
|
|
|||||
|
ENVIRONMENT
|
|
|||||
|
Working Temp.Humidity
|
-30 ~ +70℃ (Refer to “Derating Curve”)
|
|||||
|
Storage Temp.Humidity
|
-40℃~+80℃; 10%~95%RH
|
|||||
|
Temp.Coefficient
|
±0.03%/℃(0～50℃)
|
|||||
|
Vibration
|
10~500Hz,2G 10min,/1cycle,period for 60min,each along X,Y,Z axes
|
|||||
|
|
|
|||||
|
SAFETY
|
|
|||||
|
Withstand Voltage
|
I/P-O/P:3KVAC
|
|||||
|
Isolation Resistance
|
I/P-O/P>100M Ohms / 500VDC / 25℃ / 70% RH
|
|||||
|
|
|
|||||
|
STANDARD
|
|
|||||
|
Safety Standard
|
UL879(expect for LPV-60-5), UL1310(expect for LPV-60-5), CSA C22.2 No.207-M91(expect for LPV-60-5, LPV-60-48), IP67, IEC60950-1:2005+A2:2013 approved; design refer to TUV EN60950-1
|
|||||
|
EMCStandard
|
EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A
|
|||||
|
|
|
|||||
|
OTHERS
|
|
|||||
|
Dimension
|

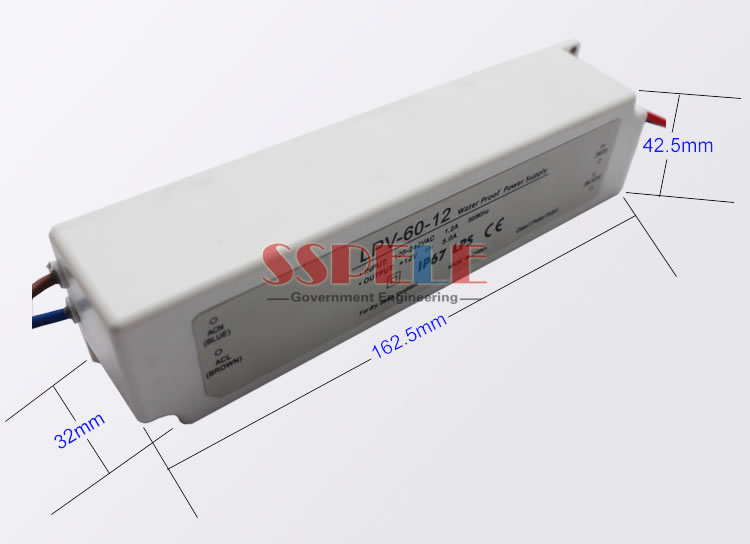

162.5*42.5*32mm(L*W*H)
|
|||||
|
Weight
|
0.4kg;32pcs/13.8kg/0.56CUFT
|
|||||
|
|
|
|||||
|
NOTE
|
|
|||||
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4. Derating may not be needed under low input voltage. Please check the static characteristics for more details.
|
||||||
