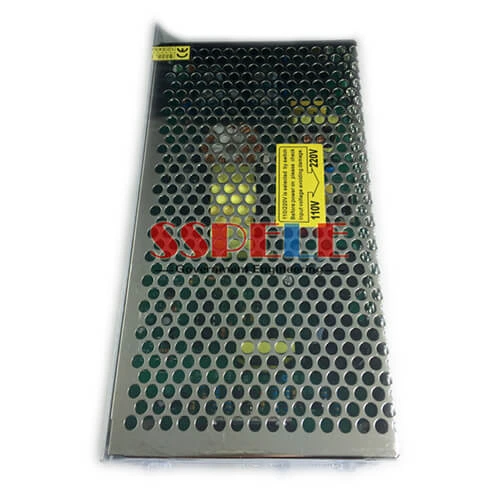

100W Switching Power Supply
Output Power: 100W
Output Voltage: 12/24/36/48/50/60/80/90/100/110/200VDC
Input Voltage: AC100-120V / 200-240V
- Output Power
- 100W
- Output Voltage
- 12/24/36/48/50/60/70/80/90/100/110/200VDC
- Output Current
- 0-8A(According to output voltage)
- Input Voltage
- AC100-120V / 200-240V
- Brand
- SSPELE
- Application
- Hospital,Engineering Project,Electric Lab,LED Lighting
- Quality
- ISO9001,CE&Rohs,UL
- Payment
- T/T, L/C, Western Union,Paypal,MoneyGram
- Quantity
- 100000 PCS Per Month
- Packing
- Suitable Packing For Sea/Air Transport
- Material
- Aluminum,PCB
- Place of Origin
- Zhejiang,China
- Ripple&Noise
- 100mVp-p
Features:
- High efficiency, high reliability
- For AC power supply input global
- 100% full load and machine test
- Protection characteristics: short circuit/overload/pressure
- PFC correction, built-in distance open/shutdown and voltage compensation signal interface
- Size: 199*98*38mm(L*W*H)
- Output Voltage Customized: 12/15/18/20/24/28/30/36/40/48/60/70/80/90/100/110/220VDC
| Output | DC output voltage | 20V | 36V | 40V | 50V | 60V | 80V | 90V |
| Output voltage tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Rated output current | 5A | 2.7A | 2.5A | 2A | 1.6A | 1.25A | 1.1A | |
| Output current range | 0-5A | 0-2.7A | 0-2.5A | 0-2A | 0-1.6A | 0-1.25A | 0-1.1A | |
| Output power | 100W | 100W | 100W | 100W | 100W | 100W | 100W | |
| Ripple and the noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| DC voltage adjustable scope | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | |
| Start, rise, keep time | 1.5s,50ms,20ms Loaded with | |||||||
| Input | Input voltage range | 100-120VAC or 200-240VAC | ||||||
| Power factor | PF>0.95/230VAC PF>0.95/115VAC Loaded with | |||||||
| Exchange input current | 2.4A/115 V 1.2A/ 230 V | |||||||
| Efficiency | 81% | 82% | 83% | 85% | 86% | 87% | 85% | |
| Impulse current | 18A/115V 36A/230V | |||||||
| Leakage current | <3.5mA/240VAC | |||||||
| Protection characteristics | Overload protection | 105%~135% | ||||||
| Protection way: current limiting, automatic recovery | ||||||||
| Overvoltage protection | 115%~135% | |||||||
| Protection way: voltage limitation, automatic recovery | ||||||||
| Environment | Working temperature, humidity | -10℃~+60℃;20%~90 %RH | ||||||
| Keep temperature, humidity | -20℃~+85℃;10%~95 %RH | |||||||
| Vibrate resistance | 10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis | |||||||
| Security | Compression sex | 1.5KVAC between input and output and input and output KVAC: 1.5 to: 0.5KVAC |
||||||
| Insulation resistance | Between the input and output, the input and output, and ground: 100M Ohms/500VDC |
|||||||
| Standards | Insulation resistance | Accord with UL1012 |
||||||
| EMC standard | Accord with EN55022 Class A |
|||||||
| Other | Weight | 0.6Kg | ||||||
| Packaging | 30pcs/19kg/0.034CBM | |||||||
| Note | All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃conditions measuring income value. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. Specific output current see output drop forehead curve. |
|||||||
