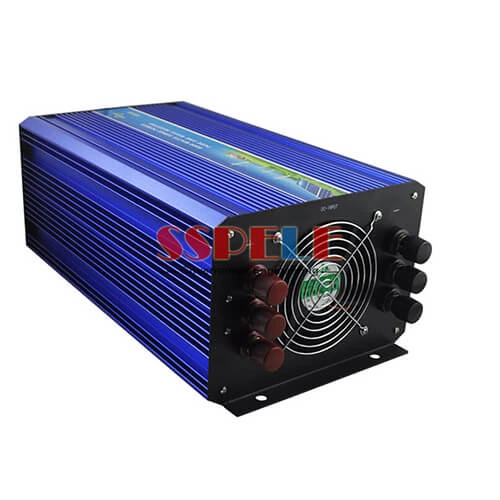

Name: 4000W Pure Sine Wave Inverter
Brand: Sense
SKU: PIS-4000W
Rating: 0 (880 reviews)

4000W Pure Sine Wave Inverter

Model PIS-4000W Input DC voltage 12V 24V 48V 110V Voltage range 10-16VDC 20-33VDC 40-63VDC 90

Output Power

4000W

Output Voltage

100/110/120VAC or 220/230/240VAC

Output Current

According to output voltage

Input Voltage

12/24/48/96/100/110/120/150/200/220VDC

Brand

SSPELE

Application

Solar,household,Electric Engineering,etc.

Quality

Government Engineering,ISO9001,CE&Rohs,UL

Payment

T/T, L/C, Western Union,Paypal,MoneyGram

Quantity

100000 PCS Per Month

Packing

Suitable Packing For Sea / Air Transport

Material

Aluminum,PCB

Place of Origin

Zhejiang,China

Ripple&Noise

100mVp-p

■ Adopt advanced CPU intelligent control

■ Complete protection

■ USB interface with 5V2A

■ Customizable frequency switch

■ Customizable DC voltage range not commonly used

Model		PIS-4000W
Input	DC voltage	12V	24V	48V	96V	110V
	Voltage range	10-16VDC	20-33VDC	40-63VDC	80-120VDC	90-135VDC
	No load current draw	0.7A	0.4A	0.2A	0.1A	0.1A
	Efficiency	> 90%
	DC connection	Cables With Clips or Car Adaptor
Output	AC voltage	100/110/120VAC or 220/230/240 VAC
	Continuous power	4000W
	Surge power	8000W
	Waveform	Pure sine wave
	Frequency	50Hz or 60Hz
	AC regulation	3%
Protection	Low voltage alarm	10.5DC±0.5V	21DC±1V	42VDC±1V	84DC±2V	96VDC±3V
	Low voltage shut down	10DC±0.5V	20DC±1V	40VDC±1V	80DC±2V	90VDC±3V
	Short circuit	Shut off output automatically
	Over load	Shut off output
	Over voltage shut down	16±0.5V	33±1V	63±1V	120±2V	135±3V
	Over thermal	Shut off output automatically
Environment	Working temperature	-10℃ and +50℃
	Working humidity	20%～90%RH
	Storage temperature	-30℃ ～ +70℃
Package	Machine size(LWH)mm	425217153
	Net weight KG	10.25
	Gross weight KG	12.4
	Packing size mm	515300230

4000W Pure Sine Wave Inverter
