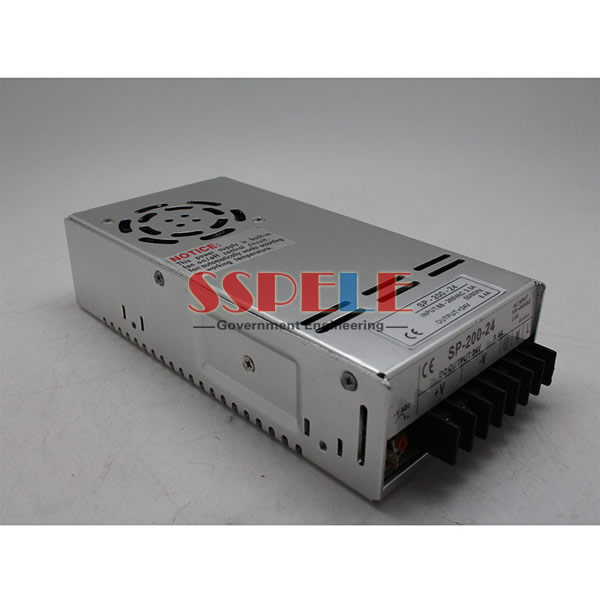

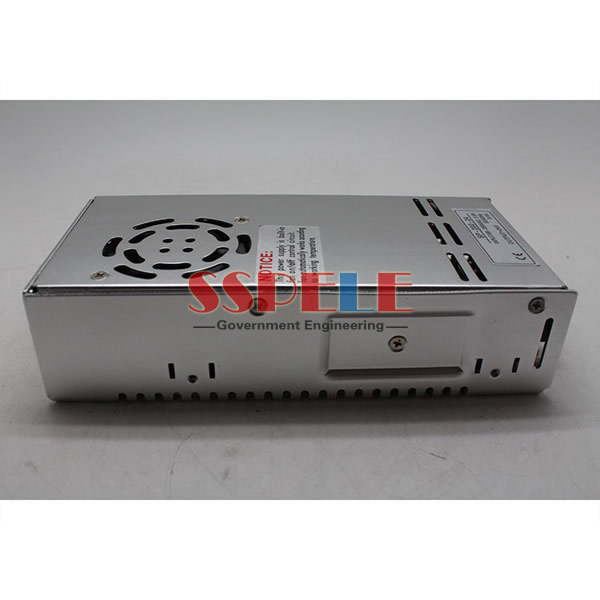

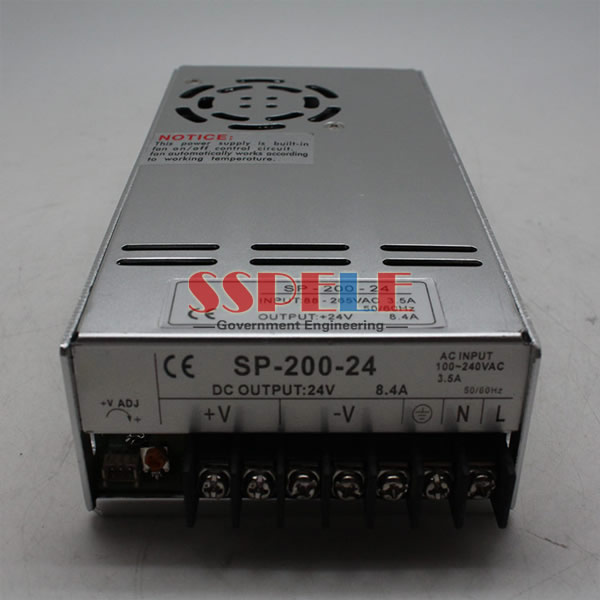

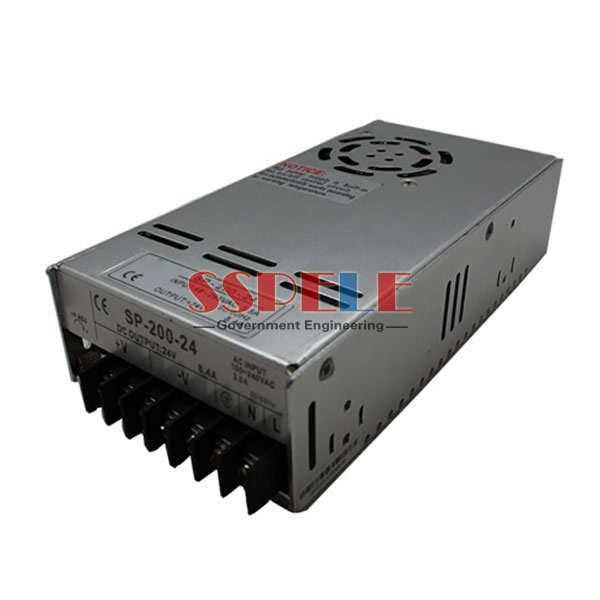

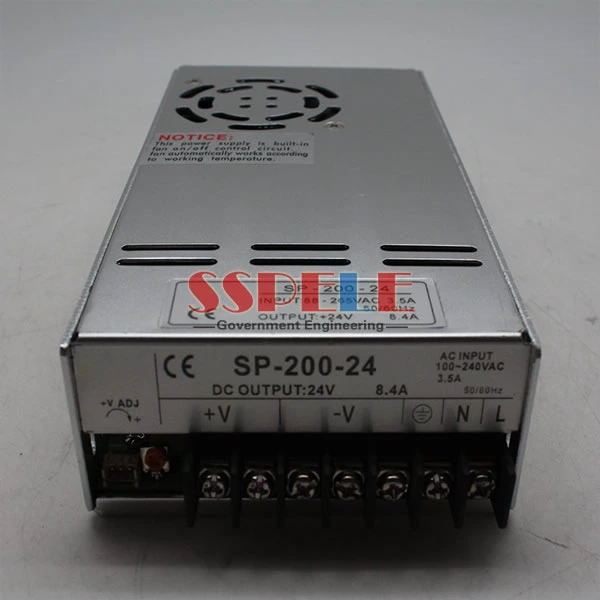

200W Single Output with PFC Function SP-200 series
Features:
- Universal AC input/ full range
- Built-in active PFC function
- 100% full load burn-in test
- Protections: Short circuit/ Over load/ Over voltage
- Built-in constant current limiting circuit
- LED indicator for power on
- Fixed switching frequency at PFC: 7KHzPWM:134 KHz
- 2 year warranty
| SPECIFICATIONS | |||||||||
| OUTPUT | |||||||||
| Model | SP-200-5 | SP-200-7.5 | SP-200-12 | SP-200-13.5 | SP-200-15 | SP-200-24 | SP-200-27 | SP-200-48 | |
| DC Voltage | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V | |
| Rated Current | 40A | 26.7A | 16.7A | 14.9A | 13.4A | 8.4A | 7.5A | 4.2A | |
| Current Range | 0-40A | 0-26.7A | 0-16.7A | 0-14.9A | 0-13.4A | 0-8.4A | 0-7.5A | 0-4.2A | |
| Rated Power | 200W | 200.2W | 200.4W | 201.1W | 201W | 201.6W | 202.5W | 201.6W | |
| Ripple&Noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 250mVp-p | |
| DC Adjustment Range | -5%，+10% | -5%，+10% | -5%，+10% | -5%，+10% | -5%，+10% | -5%，+10% | -5%，+10% | -5%，+10% | |
| Voltage Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±1% | ±1% | ±1.0% | |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Setup,Rise,Hold Up Time | 600ms,30ms,20ms at full load | ||||||||
| INPUT | |||||||||
| Voltage Range | 85～264 VAC47-63Hz；120～370VDC | ||||||||
| AC Current | 3.5A/115 VAC1.7A/230VAC | ||||||||
| Power Factor | PF>0.93/230VAC,PF>0.98/115VAC at full load | ||||||||
| Efficiency | 71% | 76% | 79% | 80% | 81% | 83% | 83% | 84% | |
| Inrush Current | Cold start 40A/230VAC | ||||||||
| Leakage Current | <2mA/240VAC | ||||||||
| PROTECTION | |||||||||
| Over Load | 105%-150% | ||||||||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | |||||||||
| Over Voltage | 110%~135% | ||||||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||||||
| Over Temp. | TSW1(Power transistor) When temp.in 95±5 ℃ shutdown o/p voltagetemp. ＜95±5 ℃O/I auto-recovery. | ||||||||
| ENVIRONMENT | |||||||||
| Working Temp.Humidity | -10℃~+50℃; 20%~90%RH | ||||||||
| Storage Temp.Humidity | -20℃~+85℃; 10%~95%RH | ||||||||
| Temp.Coefficient | ±0.03%/℃(0～50℃) | ||||||||
| Vibration | 10～500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | ||||||||
| SAFETY | |||||||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC | ||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC | ||||||||
| STANDARD | |||||||||
| Safety Standard | Design refer to UL1950,TUV EN60950 | ||||||||
| EMCStandard | Designrefer toEN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024 | ||||||||
| OTHERS | |||||||||

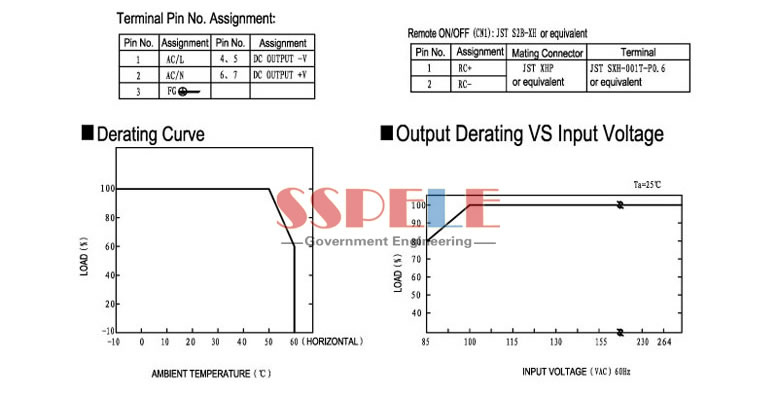

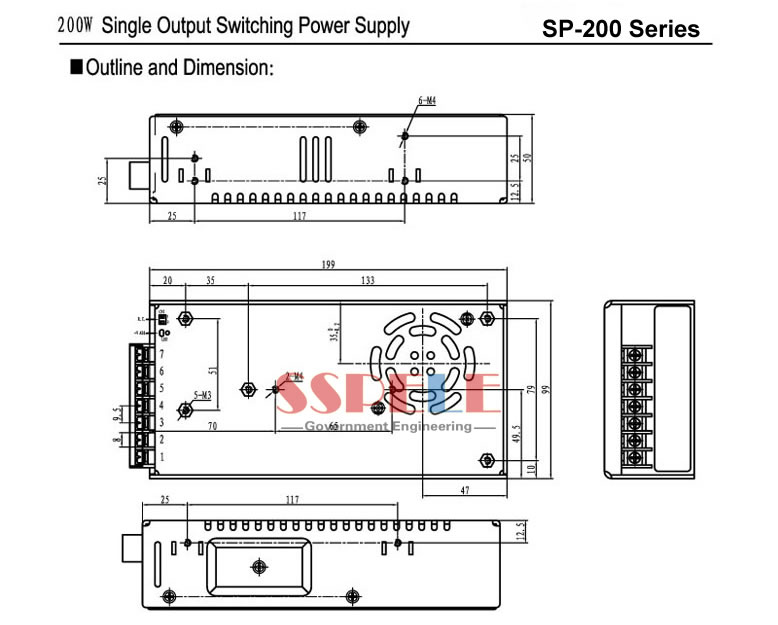

| Dimension | 199*99*50mm (L*W*H) | ||||||||
| Weight | 0.8Kg/pc | ||||||||
| NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||||||
