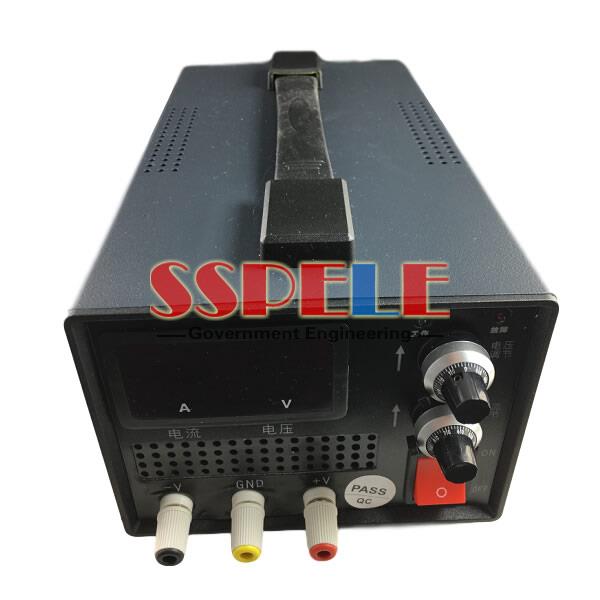

1200W Output Adjustable Switch Mode Power Supply
Output Power: 1200W
Output Voltage: 0-12V DC Adjustable
Output Current: 100A
- Output Power
- 1200W
- Output Voltage
- 0-30/36/40/48/60/70/80/90/100/110/120/150/180/200/220/250/300V DC Adjustable
- Output Current
- 0-40A
- Input Voltage
- AC100-120V or 200-240V (Optional)
- Brand
- SSPELE
- Application
- Hospital,Engineering Project,Electric Lab,LED Lighting
- Quality
- Government Engineering,ISO9001,CE&Rohs,UL
- Payment
- T/T, L/C, Western Union,Paypal,MoneyGram
- Quantity
- 100000 PCS Per Month
- Packing
- Suitable Packing For Sea / Air Transport
- Material
- Aluminum,PCB
- Place of Origin
- Zhejiang,China
- Ripple&Noise
- 300mVp-p
Features:
- High efficiency, high reliability
- For AC power supply input global
- 100% full load and machine test
- Protection characteristics: short circuit/overload/pressure
- Built-in dc electric fan forced air cooling
- Built-in fan switch control
- PFC correction, built-in distance open/shutdown and voltage compensation signal interface
- Size: 280*150*110mm(L*W*H)
- Output Voltage Customized: 0-30/36/40/48/60/70/80/90/100/110/120/150/180/200/220/250/300V DC Adjustable
| model | SHA-1200 -300 |
SHA-1200 -200 |
SHA-1200 -150 |
SHA-1200 -100 |
SHA-1200 -80 |
SHA-1200 -48 |
SHA-1200 -60 |
|
| output | Dc output voltage | 0-300V | 0-200V | 0-150V | 0-100V | 0-80V | 0-48V | 0-60V |
| Output voltage tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Rated output current | 4A | 6A | 8A | 10A | 15A | 25A | 20A | |
| Output current range | 0-4A | 0-6A | 0-8A | 0-10A | 0-15A | 0-25A | 0-20A | |
| Output power | 1200W | 1200W | 1200W | 1200W | 1200W | 1200W | 1200W | |
| Ripple and the noise | 300mVp-p | 300mVp-p | 300mVp-p | 300mVp-p | 300mVp-p | 300mVp-p | 300mVp-p | |
| Dc voltage adjustable scope | +10% | +10% | +10% | +10% | +10% | +10% | +10% | |
| Start, rise, keep time | 200ms,50ms,30ms full Loaded with 230VAC | |||||||
| input | Input voltage range | 100-120VAC or 200-240VAC | ||||||
| Power factor | PF>0.95/230VAC PF>0.95/115VAC Loaded with | |||||||
| Exchange input current | None | |||||||
| efficiency | 86% | 82% | 83% | 85% | 86% | 86% | 86% | |
| Impulse current | 20A/115V 10A/230V | |||||||
| Leakage current | <3.5mA/240VAC | |||||||
| Protection characteristics | Overload protection | 105%~135% | ||||||
| Protection way: cut off the output,reset, automatic recovery | ||||||||
| Overvoltage protection | 120%~140% | |||||||
| Protection way: hiccups, auto recovery mode | ||||||||
| environment | Working temperature, humidity | -10℃~+50℃;20%~90 %RH | ||||||
| Keep temperature, humidity | -20℃~+85℃;10%~95 %RH | |||||||
| Vibrate resistance | 10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis | |||||||
| security | Compression sex |
L/P-O/P: 1.5KVAC , L/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC (one minute) |
||||||
| Insulation resistance |
L/P-O/P, L/P-FG,O/P-FG : 500VDC / 100M ohms |
|||||||
| standards | Insulation resistance | Accord with UL1950,TUV EN60950 |
||||||
| EMC standard | Accord with GB4943,UL60950,EN60950 |
|||||||
| other | weight | 6Kg | ||||||
| packaging | 4pcs/24kg | |||||||
| note | All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃conditions measuring income value. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. Specific output current see output drop forehead curve. |
|||||||
