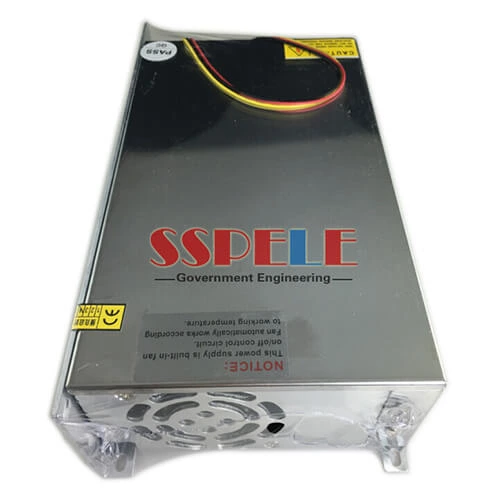

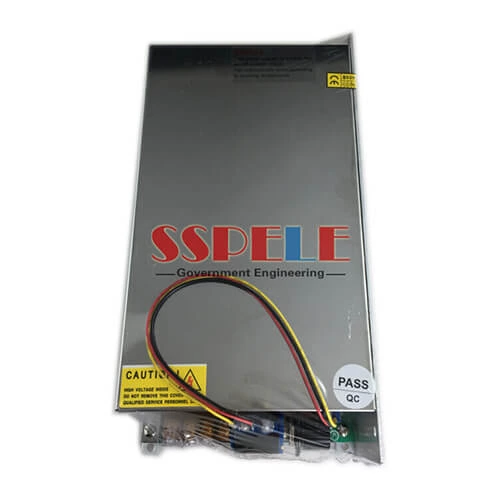

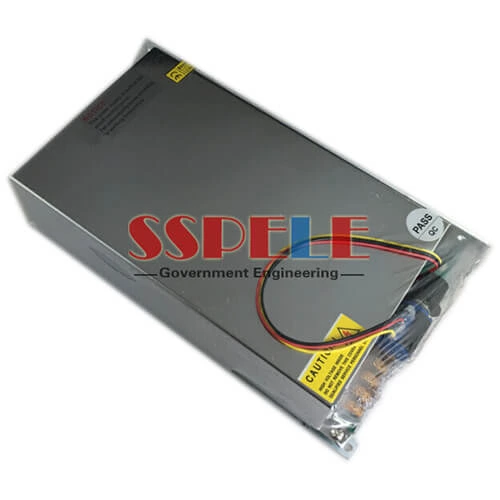

1000W Output Adjustable Switch Mode Power Supply
Features:
High efficiency, high reliability
For AC power supply input global
100% full load and machine test
- Output Power
- 1000W
- Output Voltage
- 0-24/28/30/36/40/48/60/70/80/90/100/110/120/150/180/200/220/250/300/320V DC Adjustable
- Output Current
- 0-40A
- Input Voltage
- AC100-120V or 200-240V (Optional)
- Brand
- SSPELE
- Application
- Hospital,Engineering Project,Electric Lab,LED Lighting
- Quality
- Government Engineering,ISO9001,CE&Rohs,UL
- Payment
- T/T, L/C, Western Union,Paypal,MoneyGram
- Quantity
- 100000 PCS Per Month
- Packing
- Suitable Packing For Sea / Air Transport
- Material
- Aluminum,PCB
- Place of Origin
- Zhejiang,China
- Ripple&Noise
- 200mVp-p
Features:
- High efficiency, high reliability
- For AC power supply input global
- 100% full load and machine test
- Protection characteristics: short circuit/overload/pressure
- Built-in dc electric fan forced air cooling
- Built-in fan switch control
- PFC correction, built-in distance open/shutdown and voltage compensation signal interface
- Size: 240*124*65mm(L*W*H)
- Output Voltage Customized: 0-24/28/30/36/40/48/60/70/80/90/100/110/120/150/180/200/220/250/300/320V DC Adjustable
| model | SHA-1000 -300 |
SHA-1000 -200 |
SHA-1000 -150 |
SHA-1000 -100 |
SHA-1000 -80 |
SHA-1000 -48 |
SHA-1000 -250 |
|
| output | Dc output voltage | 0-300V | 0-200V | 0-150V | 0-100V | 0-80V | 0-48V | 0-250V |
| Output voltage tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Rated output current | 3.33A | 5A | 6.6A | 10A | 12A | 20A | 4A | |
| Output current range | 0-3.33A | 0-5A | 0-6.6A | 0-10A | 0-12A | 0-20A | 0-4A | |
| Output power | 999W | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W | |
| Ripple and the noise | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 180mVp-p | 200mVp-p | |
| Dc voltage adjustable scope | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | |
| Start, rise, keep time | 1.5s,50ms,20ms Loaded with | |||||||
| input | Input voltage range | 100-120VAC or 200-240VAC | ||||||
| Power factor | PF>0.95/230VAC PF>0.95/115VAC Loaded with | |||||||
| Exchange input current | 7A/115 V 3.5A/ 230 V | |||||||
| efficiency | 86% | 82% | 83% | 85% | 86% | 86% | 86% | |
| Impulse current | 18A/115V 36A/230V | |||||||
| Leakage current | <3.5mA/240VAC | |||||||
| Protection characteristics | Overload protection | 105%~135% | ||||||
| Protection way: current limiting, automatic recovery | ||||||||
| Overvoltage protection | 115%~135% | |||||||
| Protection way: hiccups, auto recovery mode | ||||||||
| environment | Working temperature, humidity | -10℃~+50℃;20%~90 %RH | ||||||
| Keep temperature, humidity | -20℃~+85℃;10%~95 %RH | |||||||
| Vibrate resistance | 10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis | |||||||
| security | Compression sex | 3: KVAC between input and output and input and output KVAC: 1.5 to: 0.5KVAC |
||||||
| Insulation resistance | Between the input and output, the input and output, and ground: 100M Ohms/500VDC |
|||||||
| standards | Insulation resistance | Accord with UL1950,TUV EN60950 |
||||||
| EMC standard | Accord with EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204 |
|||||||
| other | weight | 2Kg | ||||||
| packaging | 12pcs/24kg/1.22CUFT | |||||||
| note | All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃conditions measuring income value. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. Specific output current see output drop forehead curve. |
|||||||
