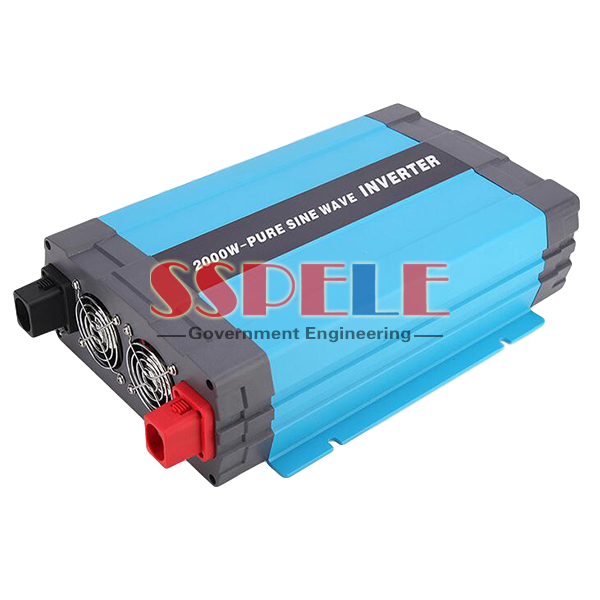

New 2000W Pure Sine Wave Inverter
■ Adopt advanced CPU intelligent control
■ Complete protection
■ USB interface with 5V2A
■ Customizable frequency swi
- Output Power
- 2000W
- Output Voltage
- 100/110/120V/220/230/240VAC
- Output Current
- As per load
- Input Voltage
- 12/24/48/96/100/110/120/150/200/220VDC
- Brand
- SSPELE
- Application
- Solar,household,Electric Engineering,etc.
- Quality
- Government Engineering,ISO9001,CE&Rohs,UL
- Payment
- T/T, L/C, Western Union,Paypal,MoneyGram
- Quantity
- 100000 PCS Per Month
- Packing
- Suitable Packing For Sea / Air Transport
- Material
- Aluminum,PCB
- Place of Origin
- Zhejiang,China
- Ripple&Noise
- 100mVp-p
■ Adopt advanced CPU intelligent control
■ Complete protection
■ USB interface with 5V2A
■ Customizable frequency switch
■ Customizable DC voltage range not commonly used
| Model | NPIS-2000W | |||||
| Input | DC voltage | 12V | 24V | 48V | 96V | 110V |
| Voltage range | 10-15.5VDC | 20-30VDC | 40-60VDC | 80-120VDC | 90-135VDC | |
| No load current draw | 0.7A | 0.58A | 0.2A | 0.1 | 0.1 | |
| Efficiency | > 90% | |||||
| DC connection | Cables With Clips or Car Adaptor | |||||
| Output | AC voltage | 100/110/120VAC or 220/230/240 VAC | ||||
| Continuous power | 2000W | |||||
| Surge power | 4000W | |||||
| Waveform | Pure sine wave | |||||
| Frequency | 50Hz or 60Hz | |||||
| AC regulation | 3% | |||||
| Protection | Low voltage alarm | 10.5DC±0.5V | 21DC±0.5V | 42VDC±1V | 84DC±2V | 96VDC±2V |
| Low voltage shut down | 10DC±0.5V | 20DC±0.5V | 40VDC±1V | 80DC±2V | 90VDC±2V | |
| Short circuit | Shut off output automatically | |||||
| Over load | Shut off output | |||||
| Over voltage shut down | 15.5±1V | 30±1V | 60±2V | 120±3V | 135±3V | |
| Over thermal | Shut off output automatically | |||||
| Environment | Working temperature | -10℃ and +50℃ | ||||
| Working humidity | 20%～90%RH | |||||
| Storage temperature | -30℃ ～ +70℃ | |||||
| Package | Machine size(L*W*H)mm | 375*234.7*96.5 | ||||
| Net weight KG | 3.9 | |||||
| Gross weight KG | 4.8 | |||||
| Packing size mm | 480*290*175 | |||||
