NES-50

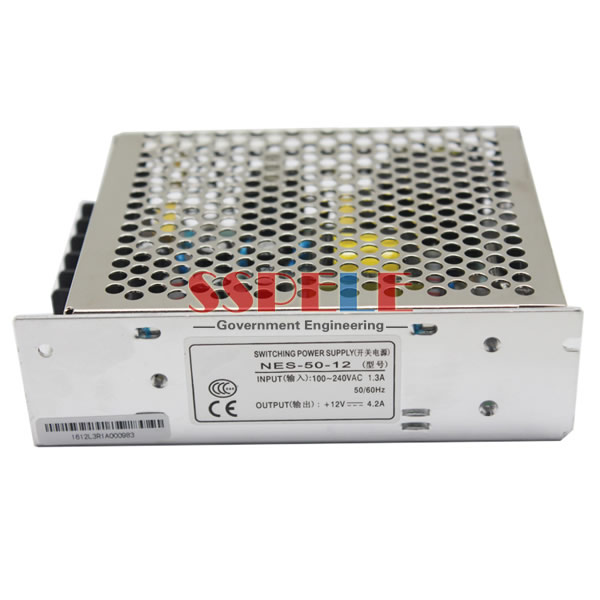

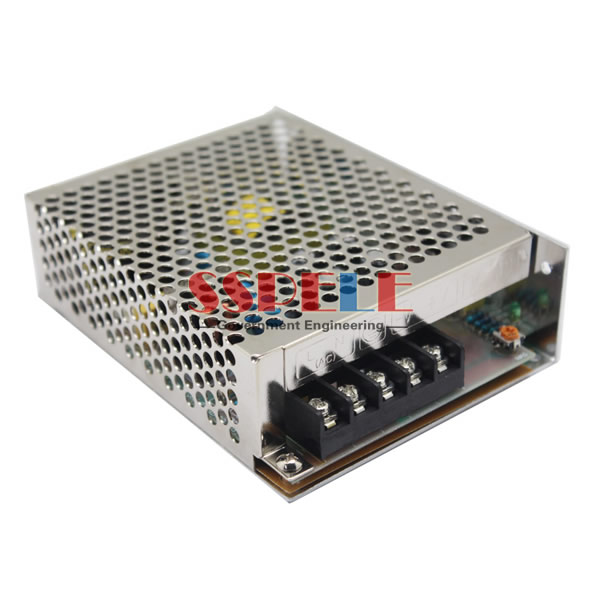

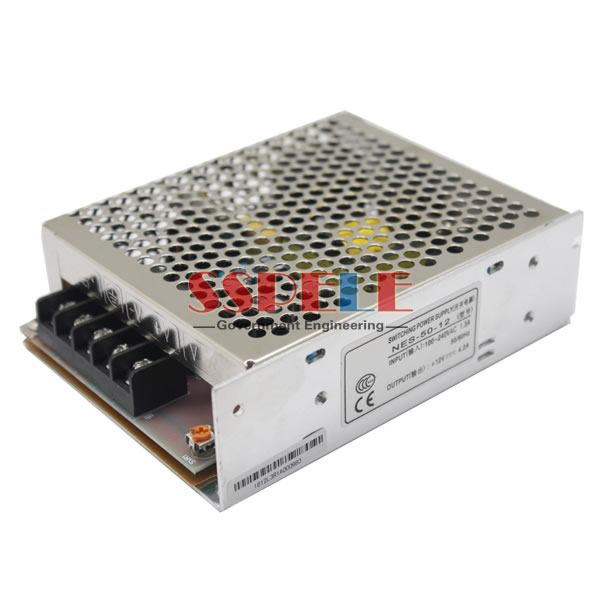

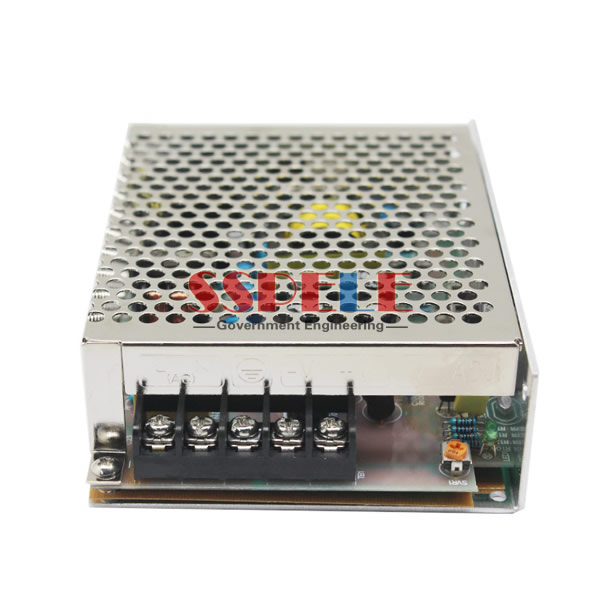

50W Single Output Switching Power Supply NES-50 series
Features:
Universal AC input/Full range
Protections: Short

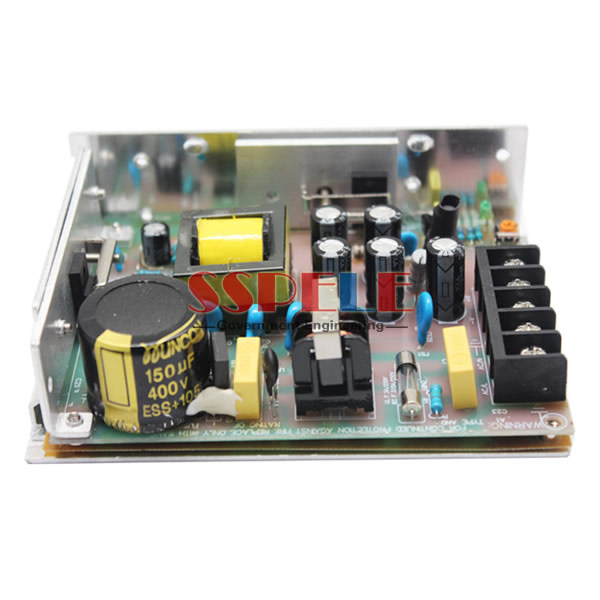

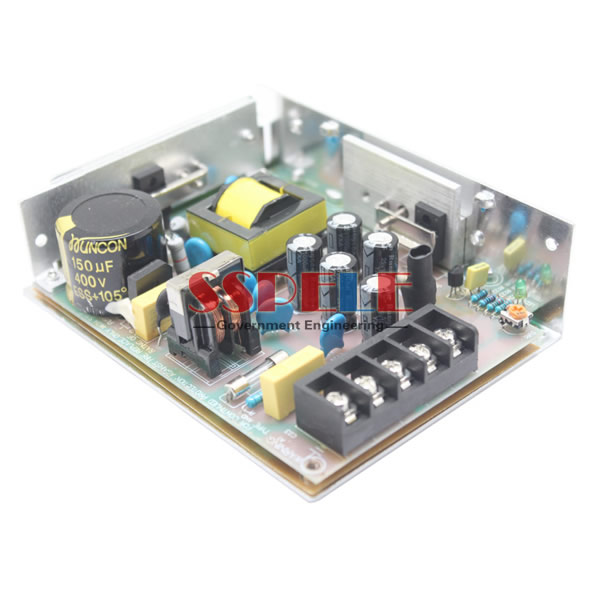

50W Single Output Switching Power Supply NES-50 series
Features:
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- 2 years warranty
|
SPECIFICATION
|
|
|||||
|
OUTPUT
|
|
|||||
|
Model
|
NES-50-5
|
NES-50-12
|
NES-50-15
|
NES-50-24
|
NES-50-48
|
|
|
DC Voltage
|
5V
|
12V
|
15V
|
24V
|
48V
|
|
|
Rated Current
|
10A
|
4.2A
|
3.4A
|
2.2A
|
1.1A
|
|
|
Current Range
|
0 ~ 10A
|
0 ~ 4.2A
|
0 ~ 3.4A
|
0 ~ 2.2A
|
0 ~ 1.1A
|
|
|
Rated Power
|
50W
|
50.4W
|
51W
|
52.8W
|
52.8W
|
|
|
Ripple&Noise
|
80mVp-p
|
120mVp-p
|
150mVp-p
|
200mVp-p
|
240mVp-p
|
|
|
Voltage Adj. Range
|
4.75 ~ 5.5V
|
10.8 ~ 13.2V
|
13.5 ~ 16.5V
|
21.6 ~ 26.4V
|
43.2 ~ 52.8V
|
|
|
Voltage Tolerance
|
±2.0%
|
±1.0%
|
±1.0%
|
±1.0%
|
±1.0%
|
|
|
Line Regulation
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
|
Load Regulation
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
|
Setup,Rise Time
|
500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
|
|||||
|
Hold Up Time
|
50ms/230VAC10ms/115VAC at full load
|
|||||
|
|
|
|||||
|
INPUT
|
|
|||||
|
Voltage Range
|
85 ~ 264VAC 120 ~ 370VDC
|
|||||
|
Frequency Range
|
47 ~ 63Hz
|
|||||
|
Efficiency
|
79%
|
82%
|
83%
|
86%
|
87%
|
|
|
AC Current
|
1.1A/115VAC 0.65A/230VAC
|
|||||
|
Inrush Current
|
Cold Start 45A
|
|||||
|
Leakage Current
|
<2mA / 240VAC
|
|||||
|
|
|
|||||
|
PROTECTION
|
|
|||||
|
Over Load
|
110 ~ 150% rated output power
|
|||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
||||||
|
Over Voltage
|
5.75~6.75V
|
13.8~16.2V
|
17.25~20.25V
|
27.6~32.4V
|
55.2~64.8V
|
|
|
Protection type: Shut down o/p voltage, re-power on to recover
|
||||||
|
|
|
|||||
|
ENVIRONMENT
|
|
|||||
|
Working Temp.
|
-20 ~ +60℃ (Refer to “Derating Curve”)
|
|||||
|
Working Humidity
|
20 ~ 90% RH non-condensing
|
|||||
|
StorageTemp., Humidity
|
-40 ~ +85℃, 10 ~ 95% RH
|
|||||
|
Temp. Coefficient
|
±0.03%/℃ (0 ~ 45℃)
|
|||||
|
Vibration
|
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
|
|||||
|
|
|
|||||
|
SAFETY &EMC
|
|
|||||
|
Safety Standards
|
Design refer to UL60950-1, CB(IEC60950-1),CCC GB4943
|
|||||
|
Withstand Voltage
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|||||
|
Isolation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
|
|||||
|
EMC Emission
|
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
|
|||||
|
EMC Immunity
|
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A
|
|||||
|
|
|
|||||
|
OTHERS
|
|
|||||
|

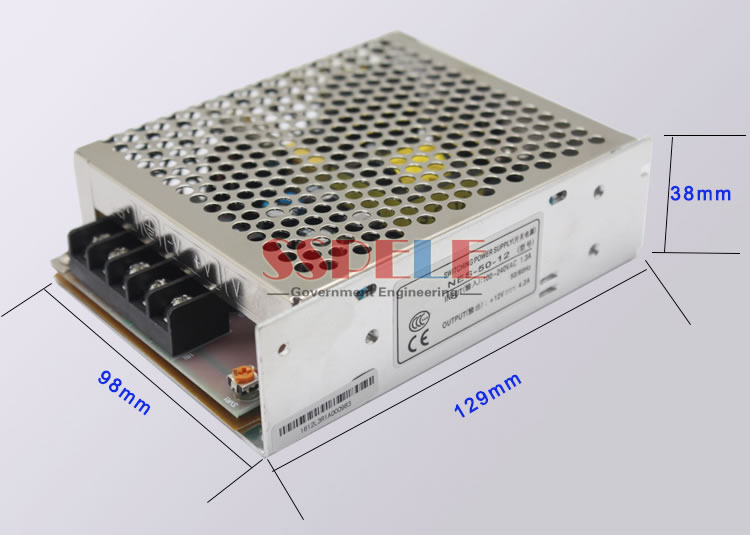

Dimension
|
129*98*38mm (L*W*H)
|
|||||
|
Weight
|
0.35Kg
|
|||||
|
Packing
|
45pcs/15.75Kg
|
|||||
