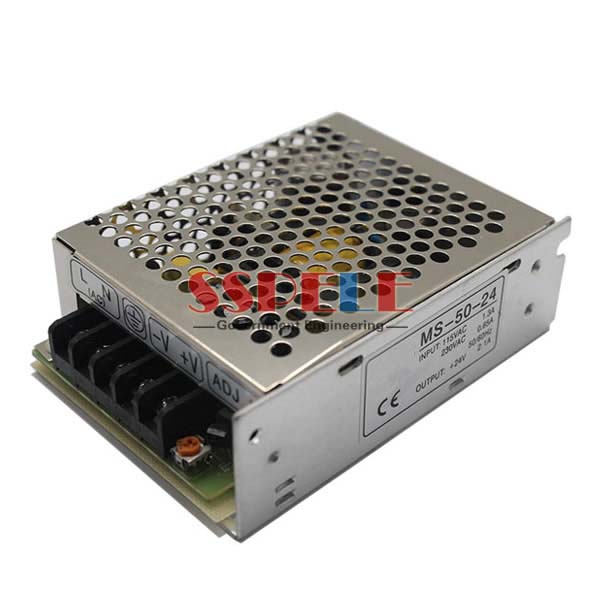

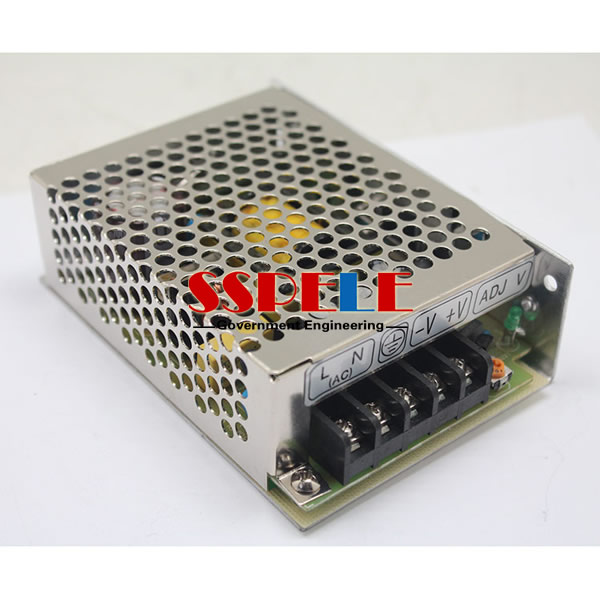

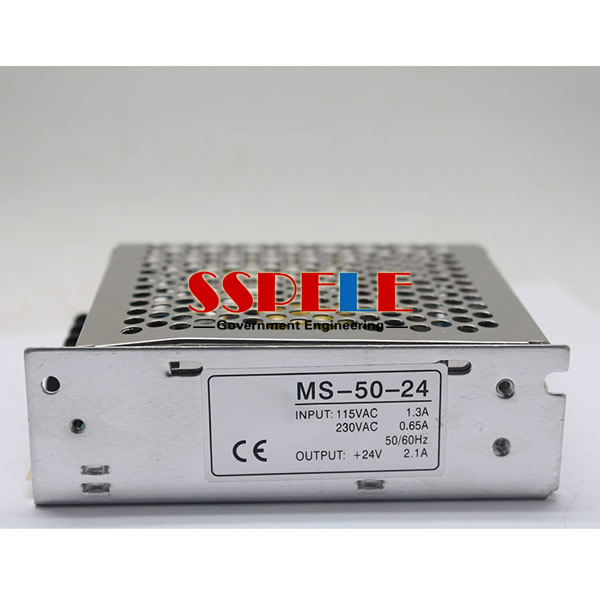

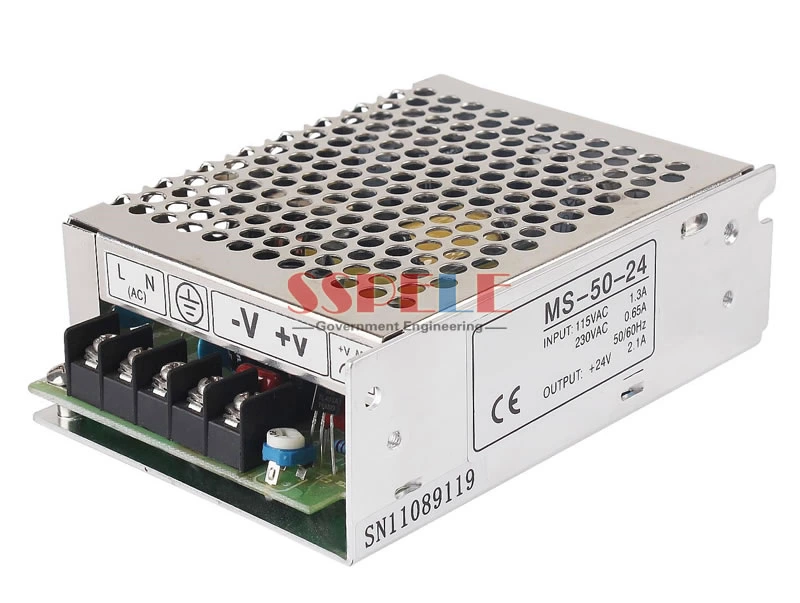

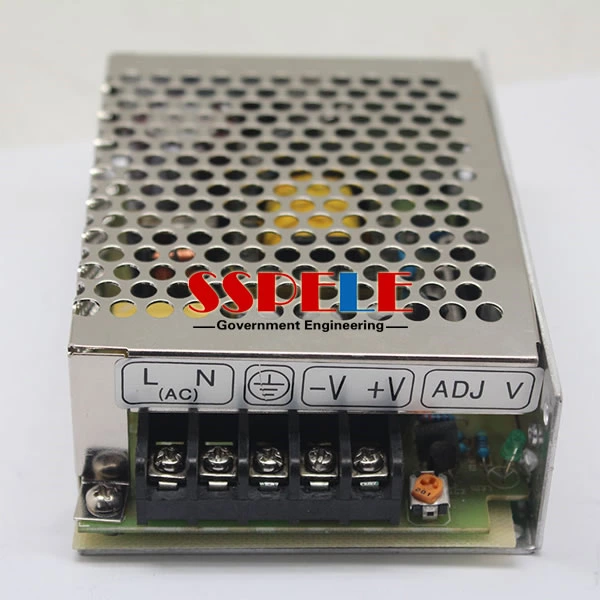

MS-50
50W Single Output Switching Power Supply MS-50 series
Low price and high reliability
105℃ output capacitor
AC inpu
50W Single Output Switching Power Supply MS-50 series
- Low price and high reliability
- 105℃ output capacitor
- AC input power suitable for the world
- High efficiency and low operation temperature
- Soft-start current can reduce the AC input impact effectively
- With Short-circuit and overload protection
- Compact size, light weight
- 100% full-load burning test
- 3 years warranty
| SPECIFICATIONS | ||||
| OUTPUT | ||||
| Model | MS-50-5 | MS-50-12 | MS-50-15 | MS-50-24 |
| DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 10A | 4.2A | 3.4A | 2.1A |
| Current Range | 0-10A | 0-4.2A | 0-3.4A | 0-2.1A |
| Rated Power | 50W | 50.4W | 51W | 50.4W |
| Ripple & Noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Voltage Adj. Range | +10,-5% | ±10% | ±10% | ±10% |
| Voltage Tolerance | ±2% | ±1% | ±1% | ±1% |
| Inlet Stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Setup,Rise,Hold Up Time | 200s,100ms,30msat full load | |||
| INPUT | ||||
| Voltage Range | 100~240VAC 47~63Hz;240~370VDC | |||
| AC Current | 1.3A/115V 0.65A/230V | |||
| Efficiency | 75% | 78% | 78% | 82% |
| Inrush Current | Cold-start current 18A/115V 36A/230V | |||
| Leakage Current | <0.5mA/240VAC | |||
| PROTECTION | ||||
| Over Load | 105%~150% | |||
| Protection type: Foldback current limiting Reset: auto recovery | ||||
| ENVIRONMENT | ||||
| Working Temp., Humidity | -10℃~+60℃(Refer to output derating curve),20%~90%RH | |||
| Storage Temp., Humidity | -20℃~+85℃,10%~95%RH | |||
| Temp. Coefficient | ±0.03%/℃(0~50%) | |||
| Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,each axes | |||
| SAFETY | ||||
| Withstand Voltage | I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC | |||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||
| STANDARD | ||||
| Safety Standard | Meet UL1012 requirement(Not apply for the mark) | |||
| EMC Standard | ………… | |||
| OTHERS | ||||

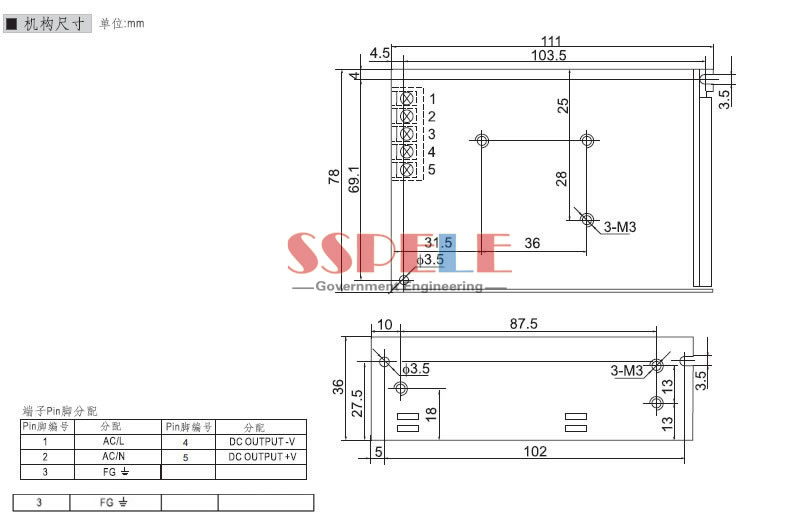

| Dimension | 110*72*35mm(L*W*H) | |||
| Weight | 0.5Kg | |||
| NOTE | ||||
| 1.The testing condition for the parameter above is:230VAC input,rated load,25℃70% RH.Humidity. 2.Error.include the setting error,line stability and load stability. 3.Wave test:adopting “A12”double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. 4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. 5.Load stability test:the load is from 0% to 100%. | ||||
