LRS-200

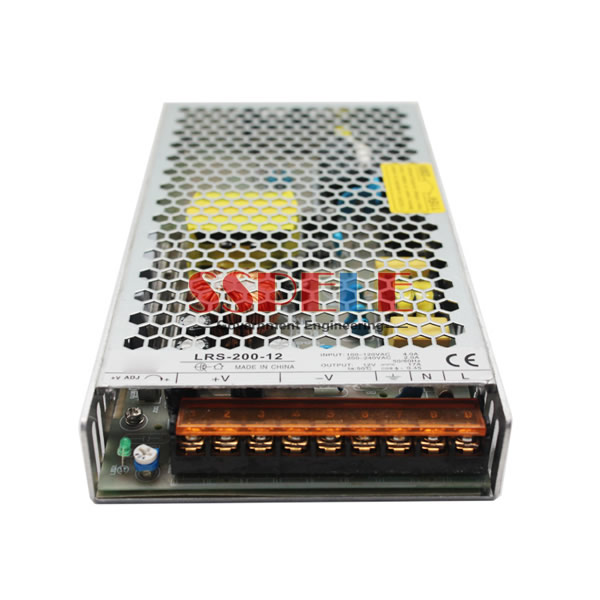

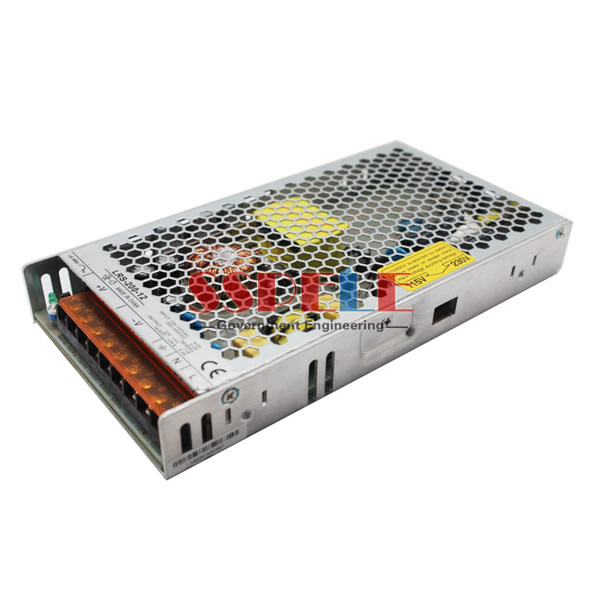

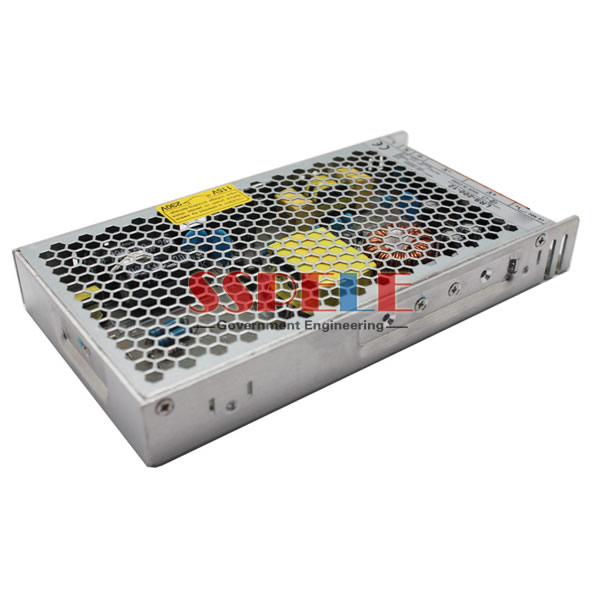

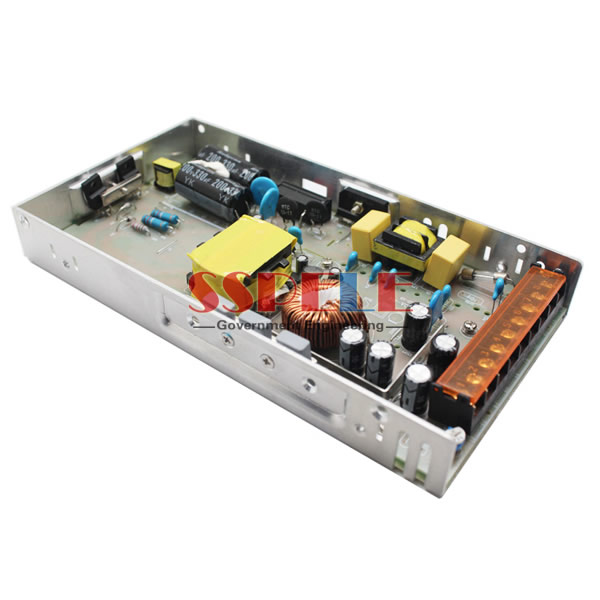

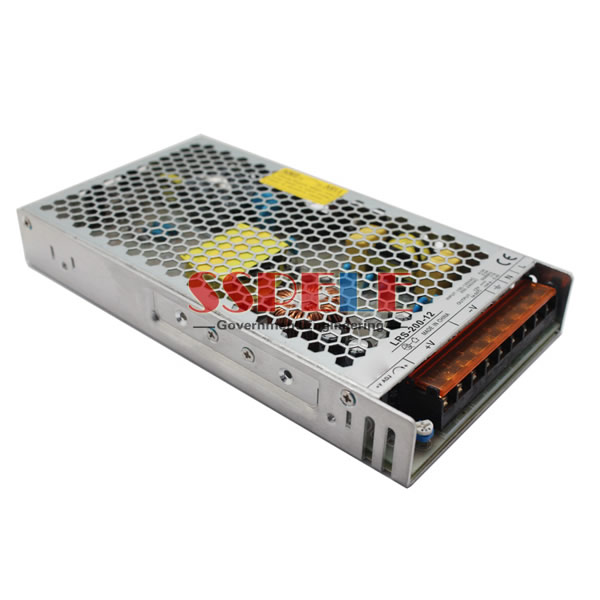

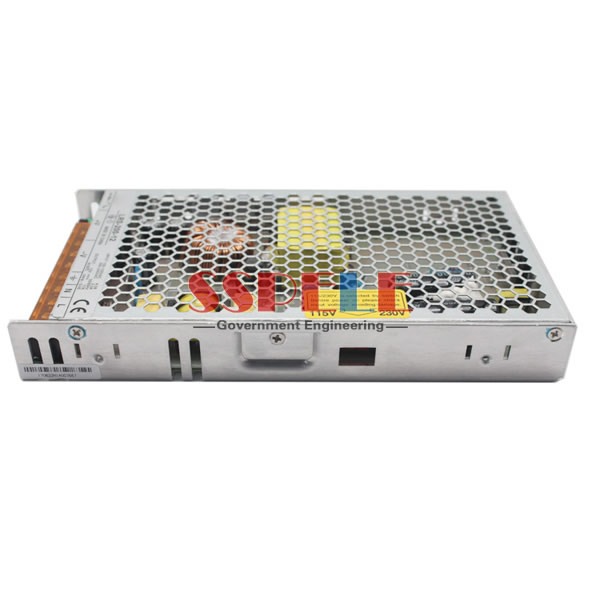

200W Single Output Switching Power Supply LRS-200 series
Features:

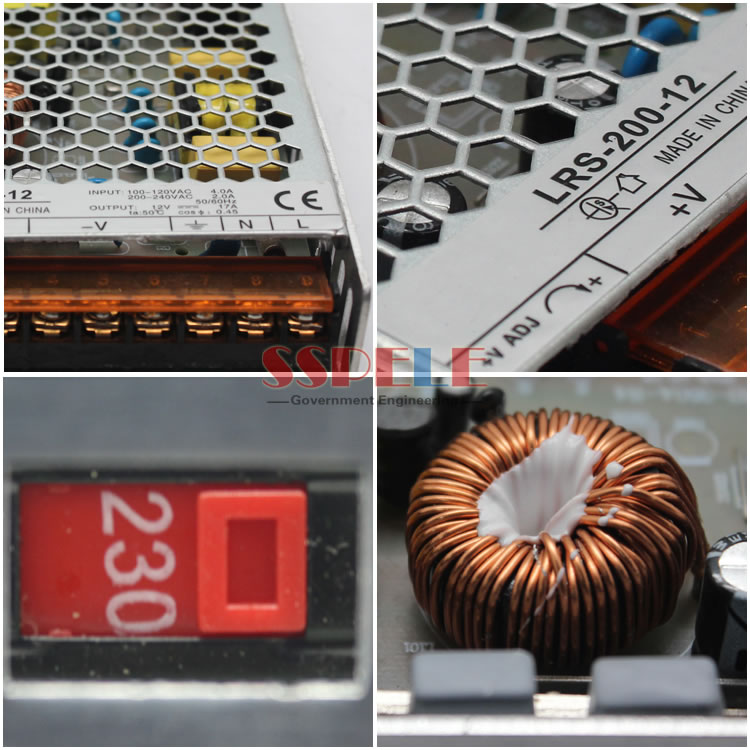

AC input range selectable by switch
Withstand 3
200W Single Output Switching Power Supply LRS-200 series
Features:
- AC input range selectable by switch
- Withstand 300VAC surge input for 5 second
- Protections: Short circuit / Overload / Over voltage/ Over temperature
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- High operating temperature up to 70℃
- High efficiency, long life and high reliability
- 2 years warranty
| SPECIFICATION | |||||||||||
| OUTPUT | |||||||||||
| Model | LRS-200-3.3 | LRS-200-5 | LRS-200-12 | LRS-200-15 | LRS-200-24 | ||||||
| DC Voltage | 3.3V | 5V | 12V | 15V | 24V | ||||||
| Rated Current | 40A | 40A | 17A | 14A | 8.8A | ||||||
| Current Range | 0~40A | 0~40A | 0~17A | 0~14A | 0~8.8A | ||||||
| Rated Power | 132W | 200W | 204W | 210W | 211.2W | ||||||
| Ripple&Noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | ||||||
| VoltageAdj. Range | 2.97~3.6V | 4.5 ~ 5.5V | 10.2~ 13.8V | 13.5~18V | 21.6~28.8V | ||||||
| Voltage Tolerance | ±3.0% | ±3.0% | ±1.5% | ±1.0% | ±1.0% | ||||||
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||||||
| Load Regulation | ±2.5% | ±2.0% | ±1.0% | ±0.5% | ±0.5% | ||||||
| Setup,Rise Time | 1300ms, 50ms/230VAC 1300ms, 50ms/115VAC at full load | ||||||||||
| Hold Up Time | 16ms/230VAC 12ms/115VAC at full load | ||||||||||
| INPUT | |||||||||||
| Voltage Range | 90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 370VDC (switch on 230VAC) | ||||||||||
| Frequency Range | 47 ~ 63Hz | ||||||||||
| Efficiency | 83% | 87% | 87.5% | 88% | 89.5% | 89.5% | |||||
| AC Current | 4A/115VAC 2.2A/230VAC | ||||||||||
| Inrush Current | Cold start 60A/115VAC 60A/230VAC | ||||||||||
| Leakage Current | <2mA / 240VAC | ||||||||||
| PROTECTION | |||||||||||
| Over Load | 110 ~ 140% rated output power | ||||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||||
| Over Voltage | 3.8~4.45V | 5.75~6.75V | 13.8~16.2V | 18~21V | 28.8~33.6V | 41.4~46.8V | |||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||||
| Over temperature | Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| ENVIRONMENT | |||||||||||
| Working Temp. | -25 ~ +70℃ (Refer to “derating curve”) | ||||||||||
| Working Humidity | 20 ~ 90% RH non-condensing | ||||||||||
| StorageTemp., Humidity | -40 ~ +85℃, 10 ~ 95% RH | ||||||||||
| Temp. Coefficient | ±0.03%/℃ (0 ~ 50℃) | ||||||||||
| Vibration | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||||
| SAFETY | |||||||||||
| Safety Standards | UL60950-1 approved | ||||||||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH | ||||||||||
| OTHERS | |||||||||||

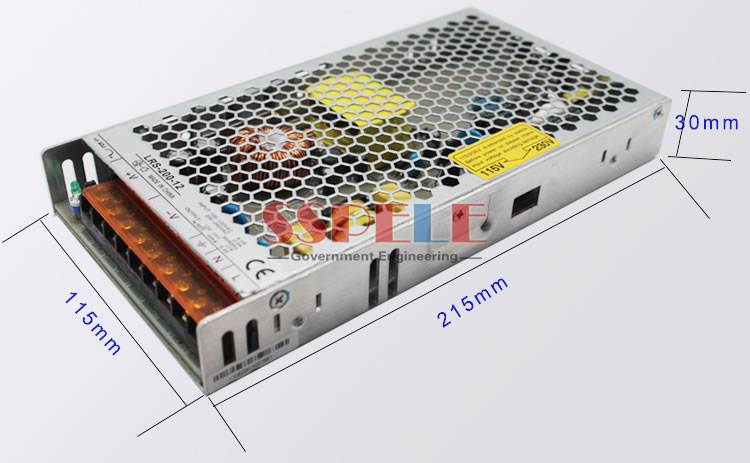

| Dimension | 215*115*30mm (L*W*H) | ||||||||||
| Weight | 0.66Kg | ||||||||||
| Packing | 15pcs/carton/10.9kg/0.78CUFT | ||||||||||
| NOTE | |||||||||||
| 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time. | |||||||||||
