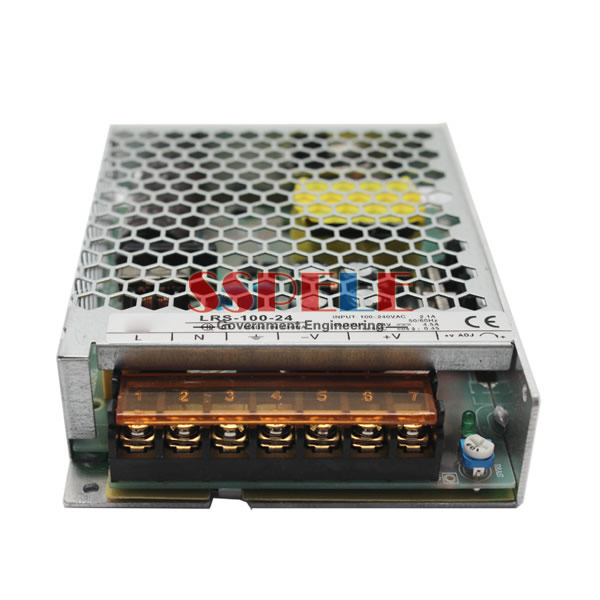

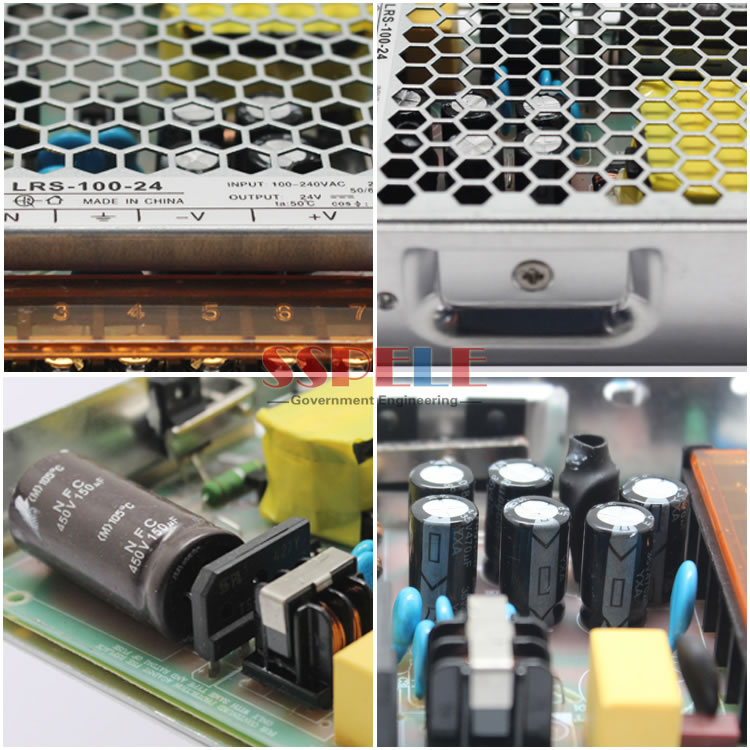

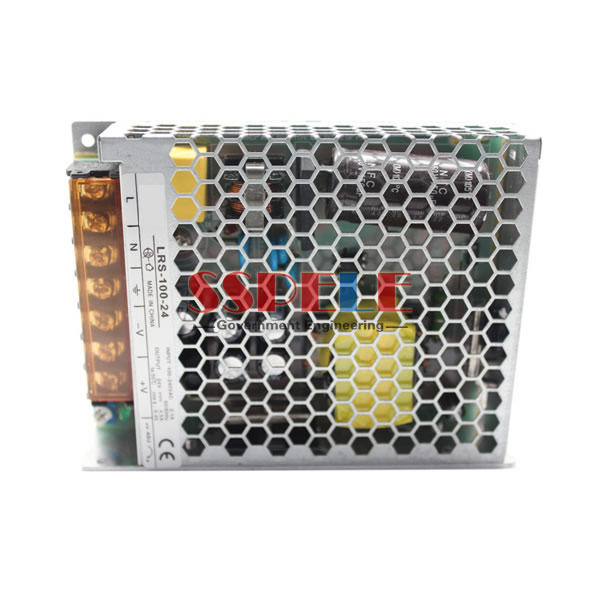

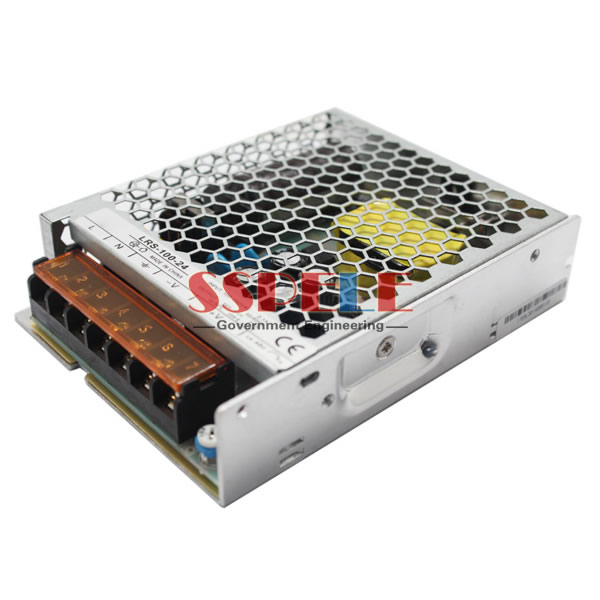

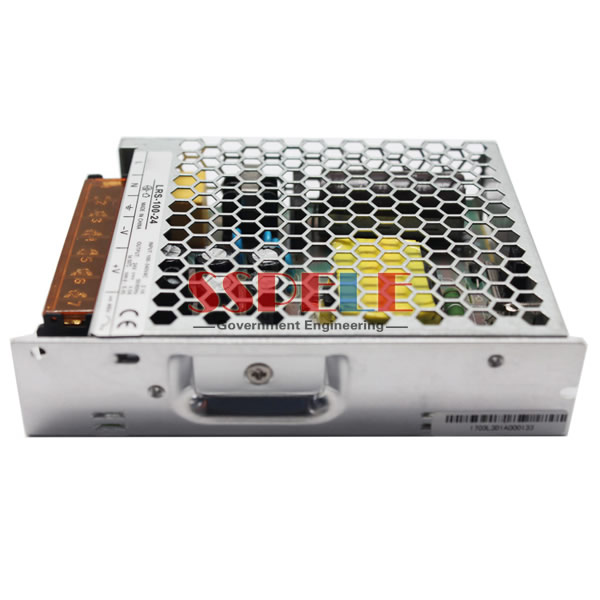

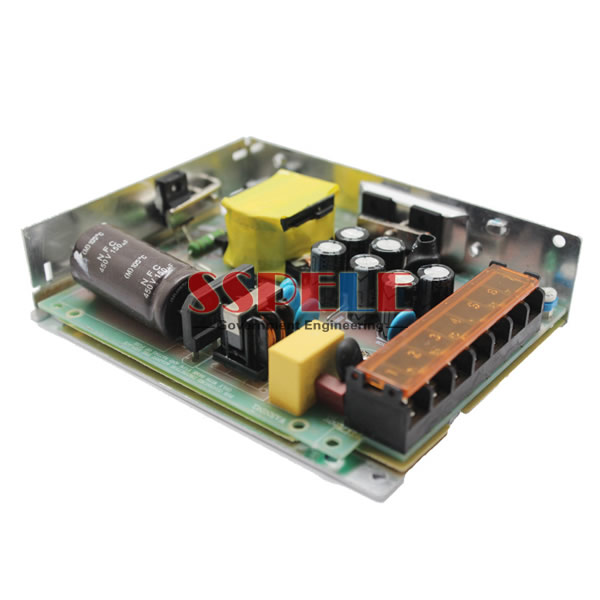

LRS-100
100W Single Output Switching Power Supply LRS-100 series
Features:
Universal AC input/ full range
Withstand 300VAC
100W Single Output Switching Power Supply LRS-100 series
Features:
- Universal AC input/ full range
- Withstand 300VAC surge input for 5 second
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- High operating temperature up to 70℃
- High efficiency, long life and high reliability
- 2 years warranty
|
SPECIFICATION
|
|
|||||||||
|
OUTPUT
|
|
|||||||||
|
Model
|
LRS-100-3.3
|
LRS-100-5
|
LRS-100-12
|
LRS-100-15
|
LRS-100-24
|
|||||
|
DC Voltage
|
3.3V
|
5V
|
12V
|
15V
|
24V
|
|||||
|
Rated Current
|
20A
|
18A
|
8.5A
|
7A
|
4.5A
|
|||||
|
Current Range
|
0~20A
|
0~18A
|
0~8.5A
|
0~7A
|
0~4.5A
|
|||||
|
Rated Power
|
66W
|
90W
|
102W
|
105W
|
108W
|
|||||
|
Ripple&Noise
|
100mVp-p
|
100mVp-p
|
120mVp-p
|
120mVp-p
|
150mVp-p
|
|||||
|
VoltageAdj. Range
|
2.97~3.6V
|
4.5 ~ 5.5V
|
10.2~ 13.8V
|
13.5~18V
|
21.6~28.8V
|
|||||
|
Voltage Tolerance
|
±3.0%
|
±2.0%
|
±1.0%
|
±1.0%
|
±1.0%
|
|||||
|
Line Regulation
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|||||
|
Load Regulation
|
±2.0%
|
±1.0%
|
±0.5%
|
±0.5%
|
±0.5%
|
|||||
|
Setup,Rise Time
|
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
|
|||||||||
|
Hold Up Time
|
55ms/230VAC 10ms/115VAC at full load
|
|||||||||
|
|
|
|||||||||
|
INPUT
|
|
|||||||||
|
Voltage Range
|
85 ~ 264VAC 120 ~ 373VDC
|
|||||||||
|
Frequency Range
|
47 ~ 63Hz
|
|||||||||
|
Efficiency
|
84.5%
|
86%
|
88%
|
88.5%
|
90%
|
|||||
|
AC Current
|
1.9A/115VAC 1.2A/230VAC
|
|||||||||
|
Inrush Current
|
Cold start 50A/230VAC
|
|||||||||
|
Leakage Current
|
<0.75mA / 240VAC
|
|||||||||
|
|
|
|||||||||
|
PROTECTION
|
|
|||||||||
|
Over Load
|
110 ~ 150% rated output power
|
|||||||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
||||||||||
|
Over Voltage
|
3.8~4.45V
|
5.75~6.75V
|
13.8~16.2V
|
18.75~21.75V
|
28.8~33.6V
|
41.4~48.6V
|
||||
|
Protection type: shut down o/p voltage, re-power on to recover
|
||||||||||
|
|
|
|||||||||
|
ENVIRONMENT
|
|
|||||||||
|
Working Temp.
|
-30 ~ +70℃ (Refer to “derating curve”)
|
|||||||||
|
Working Humidity
|
20 ~ 90% RH non-condensing
|
|||||||||
|
StorageTemp., Humidity
|
-40 ~ +85℃, 10 ~ 95% RH
|
|||||||||
|
Temp. Coefficient
|
±0.03%/℃ (0 ~ 50℃)
|
|||||||||
|
Vibration
|
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
|
|||||||||
|
|
|
|||||||||
|
SAFETY &EMC
|
|
|||||||||
|
Safety Standards
|
UL60950-1, TUV EN60950-1, EN60335-1/-2-16, CCC GB4943 approved
|
|||||||||
|
Withstand Voltage
|
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
|
|||||||||
|
Isolation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
|
|||||||||
|
EMC Emission
|
Compliance to EN55022(CISPR22), GB9254 CLASS B, EN55014 EN 61000-3-2,-3
|
|||||||||
|
EMC Immunity
|
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2), heavy industry level, criteria A
|
|||||||||
|
|
|
|||||||||
|
OTHERS
|
|
|||||||||
|
Dimension
|

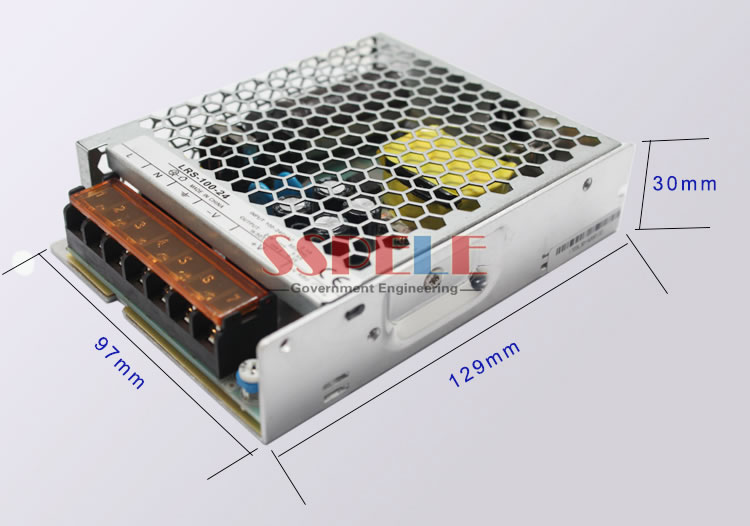

129*97*30mm (L*W*H)
|
|||||||||
|
Weight
|
0.34Kg
|
|||||||||
|
Packing
|
40pcs/carton/14.6kg/0.92CUFT
|
|||||||||
|
|
|
|||||||||
|
NOTE
|
|
|||||||||
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
|
||||||||||
