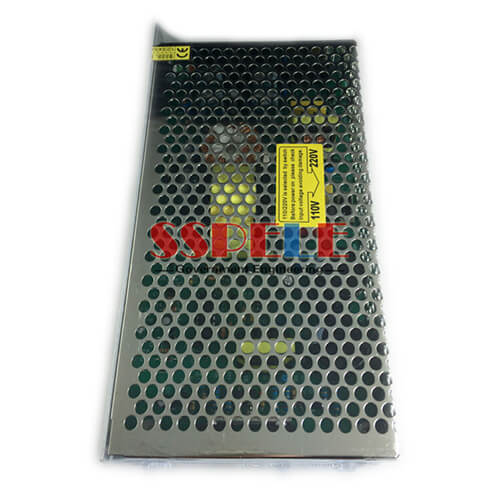

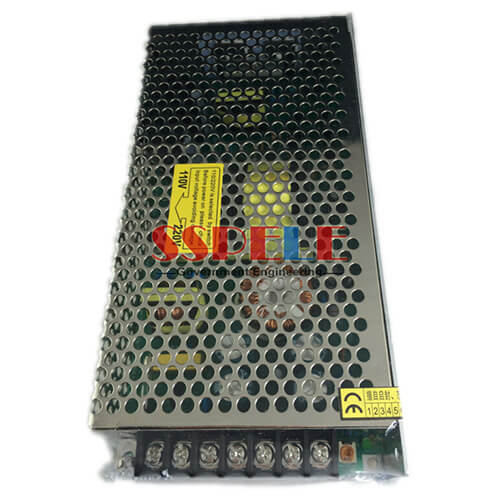

100W AC100-240V to 5V DC 20A Switching Power Supply with CE
Output Power: 100W
Input Voltage: 110-230VAC
Output Voltage: 5V DC
Frequency: 47-63Hz
Output Current: 20A
Dimens
- Output Power
- 100W
- Output Voltage
- 5VDC
- Output Current
- 20A
- Input Voltage
- AC100-120V / 200-240V
- Brand
- SSPELE
- Application
- Hospital,Engineering Project,Electric Lab,LED Lighting
- Quality
- ISO9001,CE,UL
|
|||||||||
| Model | SS-100 -5 |
SS-100 -7.5 |
SS-100 -40 |
SS-100 -3 |
SS-100 -48 |
SS-100 -24 |
|||
| Output | DC output voltage | 5V | 7.5V | 40V | 3V | 48V | 24V | ||
| Output voltage tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |||
| Rated output current | 20A | 13A | 2.5A | 20A | 2A | 4A | |||
| Output current range | 0-20A | 0-13A | 0-2.5A | 0-20A | 0-2A | 0-4A | |||
| Output power | 100W | 100W | 100W | 100W | 100W | 100W | |||
| Ripple and the noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |||
| DC voltage adjustable scope | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | |||
| Start, rise, keep time | 1.5s,50ms,20ms Loaded with | ||||||||
| Input | Input voltage range | 100-120VAC or 200-240VAC | |||||||
| Power factor | PF>0.95/230VAC PF>0.95/115VAC Loaded with | ||||||||
| Exchange input current | 2.4A/115 V 1.2A/ 230 V | ||||||||
| Efficiency | 81% | 82% | 83% | 85% | 86% | 87% | |||
| Impulse current | 18A/115V 36A/230V | ||||||||
| Leakage current | <3.5mA/240VAC | ||||||||
| Protection characteristics | Overload protection | 105%~135% | |||||||
| Protection way: current limiting, automatic recovery | |||||||||
| Overvoltage protection | 115%~135% | ||||||||
| Protection way: voltage limitation, automatic recovery | |||||||||
| Environment | Working temperature, humidity | -10℃~+60℃;20%~90 %RH | |||||||
| Keep temperature, humidity | -20℃~+85℃;10%~95 %RH | ||||||||
| Vibrate resistance | 10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis | ||||||||
| Security | Compression sex | 1.5KVAC between input and output and input and output KVAC: 1.5 to: 0.5KVAC |
|||||||
| Insulation resistance | Between the input and output, the input and output, and ground: 100M Ohms/500VDC |
||||||||
| Standards | Insulation resistance | Accord with UL1012 |
|||||||
| EMC standard | Accord with EN55022 Class A |
||||||||
| Other | Weight | 0.6Kg | |||||||
| Packaging | 30pcs/19kg/0.034CBM | ||||||||
| Note | All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃conditions measuring income value. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. Specific output current see output drop forehead curve. |
||||||||
