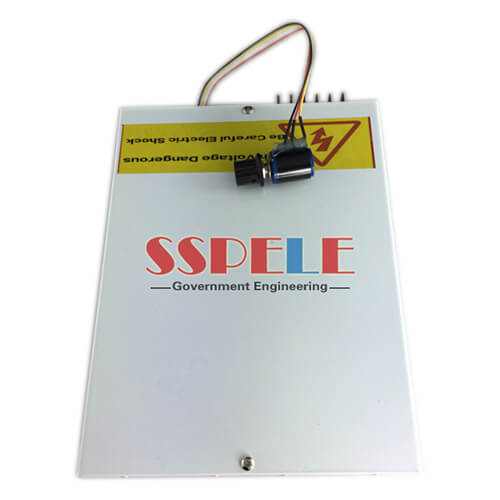

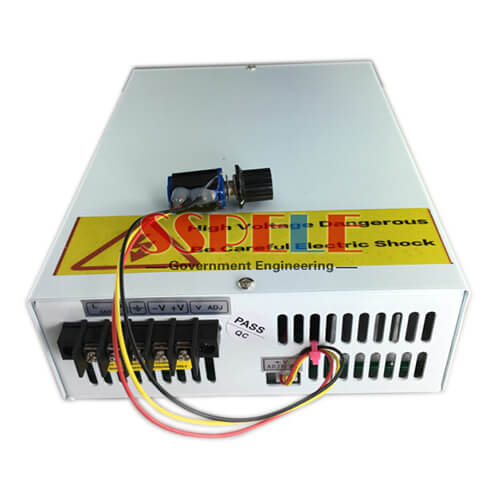

1000W 1000VDC 1A Output Switching Power Supply with CE
Features:
High reliability, low ripple
Switch input voltage range choice
Protection characteristics: short circ
- Output Power
- 1000W
- Output Voltage
- 1000VDC
- Output Current
- 1A
- Input Voltage
- AC100-120V or 200-240V (Optional)
- Brand
- SSPELE
- Application
- Hospital,Engineering Project,Electric Lab,LED Lighting,High Voltage Facility
- Quality
- Government Engineering,ISO9001,CE&Rohs,UL
- Payment
- T/T, L/C, Western Union,Paypal,MoneyGram
- Quantity
- 50000 PCS Per Month
- Packing
- Suitable Packing For Sea / Air Transport
- Material
- Aluminum,PCB
- Place of Origin
- Zhejiang,China
- Ripple&Noise
- 500mVp-p
Features:
- High reliability, low ripple
- Switch input voltage range choice
- Protection characteristics: short circuit/overload/pressure/thermal
- Built-in distance open/shutdown and voltage compensation signal interface
- Has the parallel function
- Built-in dc electric fan forced air cooling
- Size : 265*186*70mm (L*W*H)
- Output Voltage Customized: 0-400/500/550/600/700/800/900/1000/1100/1200V DC Adjustable
| model | SHP-1000-900 | SHP-1000-600 | SHP-1000-500 | SHP-1000-400 | SHP-1000-450 | SHP-1000-700 | SHP-1000-800 | SHP-1000-1000 | SHP-1000-1100 | SHP-1000-1200 | ||
| output | Dc output voltage | 900V | 600V | 500V | 400V | 450V | 700V | 800V | 1000V | 1100V | 1200V | |
| Output voltage tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ||
| Rated output current | 1.1A | 1.7A | 2A | 2.5A | 2.22A | 1.42A | 1.25A | 1A | 0.9A | 0.83A | ||
| Output current range | 0-1.1A | 0-1.7A | 0-2A | 0-2.5A | 0-2.22A | 0-1.42A | 0-1.25A | 0-1A | 0-0.9A | 0-0.83A | ||
| Output power | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W | ||
| Ripple and the noise | 500mVp-p | 500mVp-p | 500mVp-p | 500mVp-p | 500mVp-p | 500mVp-p | 500mVp-p | 500mVp-p | 500mVp-p | 500mVp-p | ||
| Dc voltage adjustable scope | 0-400/500/550/600/700/800/900/1000/1100/1200V DC Adjustable | |||||||||||
| Start, rise, keep time | 800ms, 50ms, 16ms Loaded with | |||||||||||
| input | Input voltage range | 200~240 VAC 47~63 Hz | ||||||||||
| Exchange input current | 13A/115 VAC 8.0A/ 230 VAC | |||||||||||
| efficiency | 80% | 81% | 85% | 87% | 87% | 87% | 87% | 87% | 87% | 87% | ||
| Impulse current | 60A/230V | |||||||||||
| Leakage current | 3.5 mA/240VAC | |||||||||||
| Protection characteristics | Overload protection | 110%~135% | ||||||||||
| Protection way: current limiting, delay shut off, restart | ||||||||||||
| Overvoltage protection | 110%~135% | |||||||||||
| Protection way: cut output, restart | ||||||||||||
| High temperature protection | TSW1 (power tube) temperature > 100 ℃, restart when cut off output | |||||||||||
| environment | Working temperature, humidity | -10℃~+65℃,20%~90 %RH | ||||||||||
| Keep temperature, humidity | -20℃~+85℃,10%~95 %RH | |||||||||||
| Vibrate resistance | 10~200Hz,2G 10min.. / 1 cycle time, 60 minutes, the axis | |||||||||||
| security | Compression sex | I/P-O/P, I/P-FG:1500VAC | ||||||||||
| Insulation resistance | I/P-O/P, I/P-FG, >100M Ohms / 500VDC | |||||||||||
| standards | Safety standards | Accord with UL1950,CSA22.2,IEC60950 |
||||||||||
| EMC standard | Accord with FCC Part 15 Class A |
|||||||||||
| other | weight | 4.5Kg; | ||||||||||
| packaging | 8pcs/34.0kg/CARTON | |||||||||||
| note | 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25℃ conditions measuring income value. 2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. 4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. |
|||||||||||
